2499-003-X5U0-102PLF

Overview

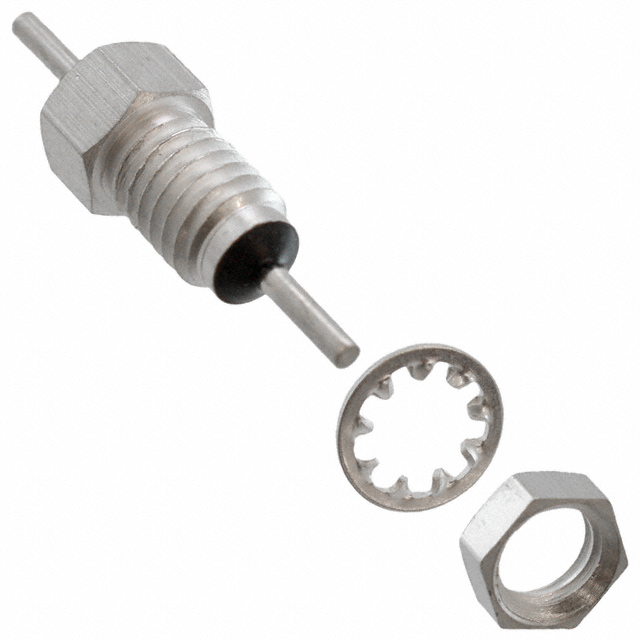

The Tusonix 2499-003-X5U0-102PLF is an EMI feedthrough filter with a capacitance of 1000 pF and a voltage rating of 500 V. It supports a maximum DC current of 20 A. The component features axial wire leads and a bushing configuration. It operates within a temperature range of -55°C to +85°C.

Feature Summary

• Provides electromagnetic interference mitigation through low-pass filtering action
• Utilizes ceramic dielectric for stable capacitive performance
• Designed for panel mounting via bushing configuration

Applications

• Power supply input filtering
• Electronic equipment noise suppression
• Signal line protection against EMI

Procurement Notes

Verify the complete part number including suffixes to ensure correct capacitance, voltage, and termination specifications. Confirm RoHS compliance status and environmental declarations prior to ordering. Check manufacturer documentation for specific handling requirements related to ceramic components.

Selection Notes

Select this component when high-voltage isolation and moderate current capacity are required in compact designs. The axial leaded bushing style facilitates direct panel integration. Ensure the operating environment remains within the specified thermal limits for reliable operation.

Part Context

This model belongs to the Tusonix family of EMI feedthrough filters manufactured by CTS Electronic Components. These components are engineered for robust noise reduction in sensitive electronic systems. The series offers various capacitance and voltage ratings to suit different circuit requirements.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify that any replacement matches the original capacitance, voltage rating, current handling, and physical mounting dimensions.
