2499-003-X5W0-103ZLF

Overview

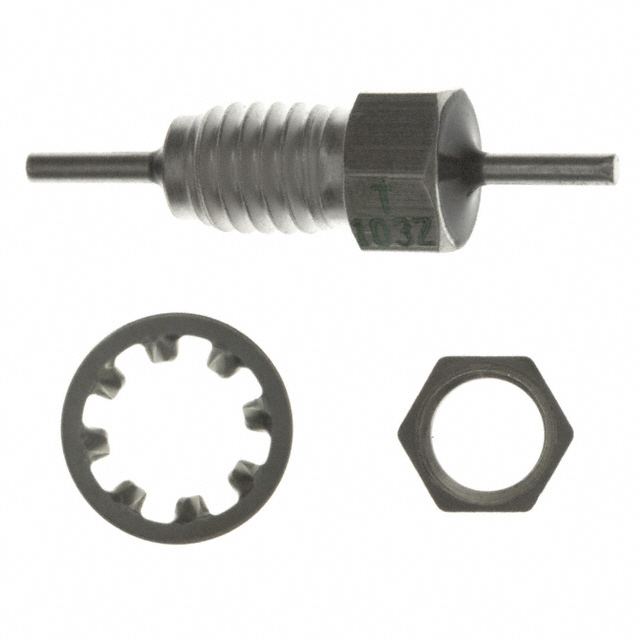

The 2499-003-X5W0-103ZLF is an axial feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 10000 pF and a voltage rating of 500 VDC. The component utilizes X5W dielectric material, providing stable performance across its operating temperature range. It supports a maximum current rating of 20 A and is designed for EMI/RFI suppression applications.

Feature Summary

• Axial leaded feedthrough construction for direct panel mounting
• X5W dielectric material for consistent electrical characteristics
• High current handling capability suitable for power line filtering

Applications

• EMI/RFI suppression in electronic equipment power inputs
• Filtering in aerospace and defense systems
• Industrial control system power conditioning

Procurement Notes

Verify the complete part number including suffixes to ensure correct dielectric and termination specifications. Confirm RoHS compliance status with the manufacturer or authorized distributor prior to ordering. Check datasheet for specific mounting torque and hole size requirements to ensure mechanical compatibility with your design.

Selection Notes

Select this component when high current capacity and moderate capacitance are required for feedthrough filtering. The X5W dielectric offers a balance of stability and cost. Ensure the 500V rating exceeds the peak circuit voltage. Verify that the axial form factor fits the available panel space and mounting constraints.

Part Context

This part belongs to the Tusonix 2499 series of feedthrough capacitors. These components are designed for robust EMI suppression in harsh environments. The series typically includes various capacitance values and voltage ratings to suit different power line filtering needs.

Replacement Considerations

Check for equivalent parts from other manufacturers offering similar axial feedthrough configurations. Ensure any substitute matches the 10000 pF capacitance, 500V rating, and 20A current handling. Verify dimensional compatibility for panel mounting holes.
