2504024717H0

Overview

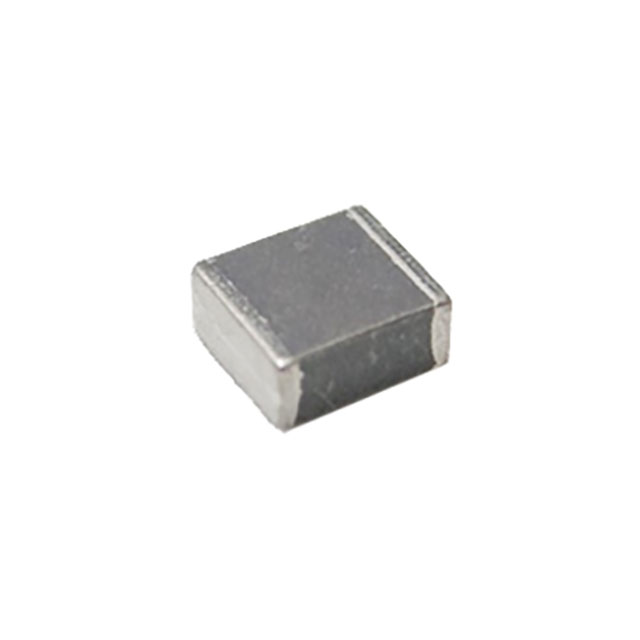

Fair-Rite Products Corp. part number 2504024717H0 is a multi-layer ferrite chip bead designed for low current suppression applications. It features an SMD/SMT termination style and is housed in a 0402 (1005 metric) package. The component exhibits an impedance of 470 Ohms at 100 MHz, with a maximum DC resistance of unspecified ohms and a maximum DC current rating of 250 mA. It operates within a temperature range of -55°C to +125°C.

Feature Summary

• Multi-layer construction for compact board integration
• Solid core design for consistent high-frequency performance
• Surface mount termination for automated assembly

Applications

• Low current signal line filtering
• High frequency noise suppression on data lines
• Power supply decoupling in space-constrained designs

Procurement Notes

Verify the specific datasheet for the exact maximum DC resistance value, as source text indicates it is listed but not explicitly quantified in the provided snippet. Confirm RoHS compliance status and REACH registration details directly from the manufacturer's official documentation before finalizing procurement specifications.

Selection Notes

Select this component when board space is limited to a 0402 footprint and current requirements do not exceed 250 mA. Ensure the target application frequency aligns with the 100 MHz impedance characteristic. Verify thermal management capabilities against the specified operating temperature range of -55°C to +125°C.

Part Context

This component belongs to Fair-Rite's series of ferrite chip beads, which are solid-state passive components used for electromagnetic interference suppression. Unlike snap-on cores, these are integrated directly onto printed circuit boards during surface mount assembly processes.

Replacement Considerations

Check for compatible 0402 ferrite beads from other manufacturers offering similar 470 Ohm impedance at 100 MHz and comparable current ratings. Ensure pinout compatibility and thermal characteristics match the original design constraints.
