2506031027H0

Overview

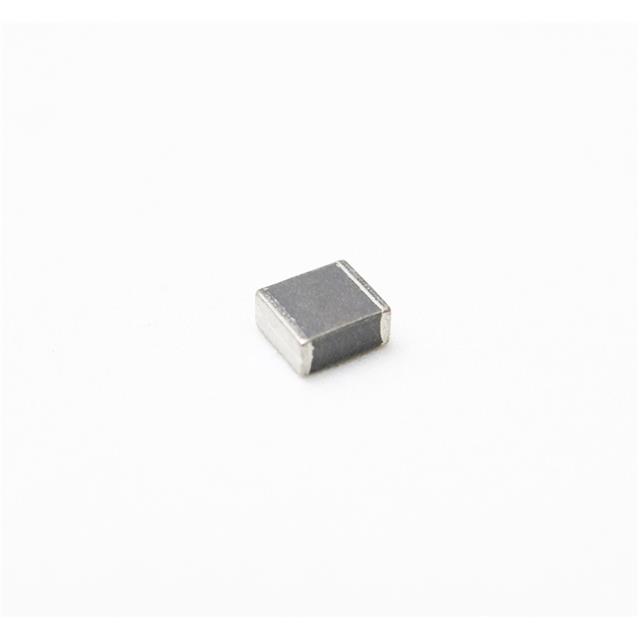

The Fair-Rite 2506031027H0 is a multilayer ferrite chip bead designed for surface-mount applications. It provides an impedance of 1 kOhms at a test frequency of 100 MHz with a tolerance of 25%. The component operates within a temperature range of -55°C to +125°C and supports a maximum DC current of 50 mA. Its maximum DC resistance is 1.5 Ohms. The physical dimensions are 1.6 mm in length, 0.8 mm in width, and 1.10 mm in height, conforming to the 0603 (1608 metric) package standard.

Feature Summary

• Multilayer construction enables effective suppression of conducted electromagnetic interference signals in compact designs.
• Surface-mount technology facilitates automated placement and dense circuit board packaging.
• High-temperature stability ensures reliable operation across a wide thermal range.

Applications

• Suppression of conducted EMI signals in cellular phones
• Noise filtering in computer systems
• Signal integrity management in laptops

Procurement Notes

Verify the specific suffix H0 against official Fair-Rite documentation to confirm exact electrical characteristics and material composition. Confirm RoHS compliance status and moisture sensitivity level prior to integration. Ensure the selected packaging format aligns with automated assembly requirements. Cross-reference datasheet parameters with system design constraints to validate performance under operating conditions.

Selection Notes

Select this component when high impedance at 100 MHz is required for single-line signal filtering in space-constrained environments. The 0603 footprint suits dense PCB layouts. Verify that the 50 mA current rating meets the application's DC load requirements. Consider the 1.5 Ohm DC resistance impact on signal attenuation. Evaluate thermal performance within the specified -55°C to +125°C operational window.

Part Context

This part belongs to the Fair-Rite Series 25 family of multilayer chip beads. The series offers various impedance values and package sizes to address diverse EMI suppression needs. These components utilize specialized ferrite materials optimized for high-frequency noise absorption while maintaining low DC resistance.

Replacement Considerations

Consult Fair-Rite documentation for direct substitutes within the Series 25 line. Verify equivalent impedance, current rating, and package dimensions before substitution. No alternative part numbers are confirmed in the provided source data.
