Product Detailed Parameters
- Description：LINE FLTR 690VAC 250A CHASS MNT
- Series：APH
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：690V
- Current：250 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

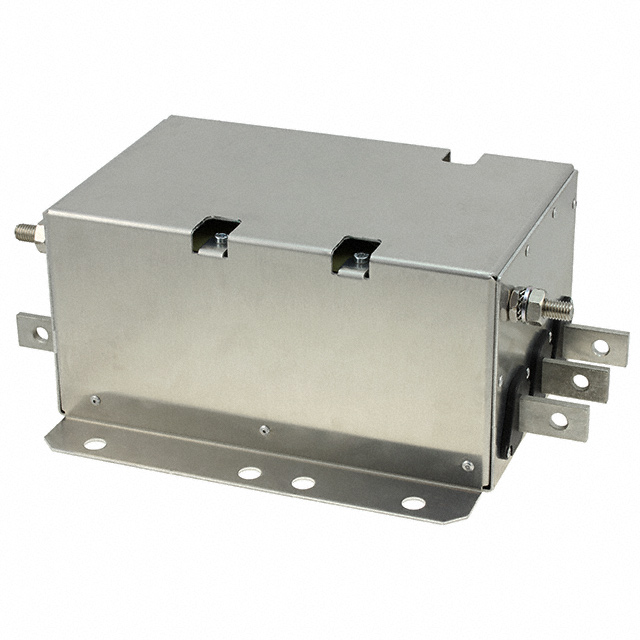

The 250APH12P is a three-phase EMI filter manufactured by TE Connectivity Corcom Filters, designed for chassis mounting in industrial applications. It supports a rated voltage of 690 VAC and a continuous current of 250 A. The component features a three-stage filtering configuration to effectively suppress electromagnetic interference across power lines. Operating within a temperature range of -10°C to 40°C, it meets rigorous safety standards including CSA, UR, and VDE certifications. This high-current filter is engineered for robust performance in demanding electrical environments requiring reliable noise suppression.
Feature Summary
- Three-stage filtering architecture for enhanced noise attenuation
- High current capacity supporting up to 250 A
- Chassis mount design for secure industrial installation
- Comprehensive safety certifications including CSA, UR, and VDE
Applications
- Industrial machinery power systems
- Large-scale manufacturing equipment
- Heavy-duty motor drives
- Power distribution units
Procurement Notes
Verify the specific part number 250APH12P against official TE Connectivity documentation to ensure accuracy. Confirm that the required voltage rating of 690 VAC and current capacity of 250 A align with your system specifications. Check for valid safety certifications such as CSA, UR, and VDE relevant to your region. Ensure compatibility with chassis mounting requirements and operating temperature ranges before finalizing procurement.
Selection Notes
Select this component when high-current three-phase filtering is required for industrial equipment. Consider the 690 VAC rating and 250 A capacity to match heavy-duty load requirements. Evaluate the chassis mount style for integration into existing enclosures. Verify that the three-stage configuration provides sufficient attenuation for your specific EMI/RFI environment compared to single or two-stage alternatives.
Part Context
The 250APH12P belongs to the Corcom APH series of three-phase power line filters. This series is designed for high-current applications ranging from 250 to 1600 amps. It represents TE Connectivity's expansion into high-capacity filtering solutions for industrial sectors requiring robust electromagnetic interference suppression in three-phase power systems.
Replacement Considerations
Consult official TE Connectivity documentation for confirmed substitute part numbers within the APH series. Ensure any replacement maintains the 690 VAC rating, 250 A current capacity, and three-stage configuration. Verify mechanical compatibility for chassis mounting and confirm that safety certifications remain valid for the target application.
