250APS12P

Overview

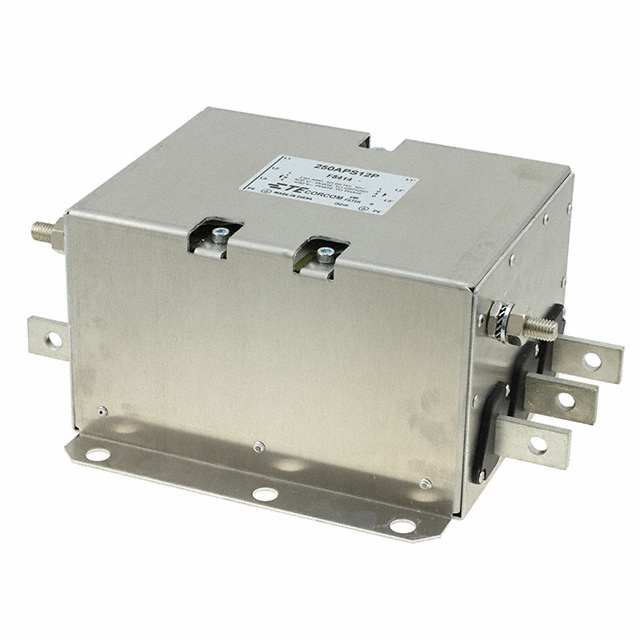

The TE Connectivity Corcom Filters 250APS12P is a power line filter module designed for industrial applications. It operates at 690VAC with a rated current of 250A and supports frequencies of 50Hz to 60Hz. The component utilizes quick connect terminals and features flange mount installation. This single-phase EMC/EMI filter provides noise suppression for high-power electrical systems.

Feature Summary

• Provides EMI/RFI noise suppression for three-phase or high-power single-phase AC lines
• Engineered for robust performance in demanding industrial environments
• Features quick connect termination for efficient assembly

Applications

• Industrial motor drives and power supplies
• Large-scale manufacturing equipment
• Power distribution units requiring high current filtering

Procurement Notes

Verify the specific datasheet version and technical parameters before procurement, as this part number may be End of Life (EOL). Confirm availability through authorized distributors or TE Connectivity directly. Ensure that the replacement strategy accounts for potential supply chain constraints associated with discontinued components.

Selection Notes

Select this component when a 250A rating and 690VAC voltage are required for power line filtering. Consider the flange mount style and quick connect interface for compatibility with existing chassis designs. Evaluate the need for high-current EMI suppression in heavy-duty industrial machinery compared to lower-rated alternatives.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, known for reliable electromagnetic interference suppression. The 250APS12P represents a high-capacity solution within their power line filter portfolio, targeting sectors requiring significant current handling capabilities and strict compliance with industrial standards.
