Product Detailed Parameters
- Description：LINE FLTR 440VAC 250A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：250 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

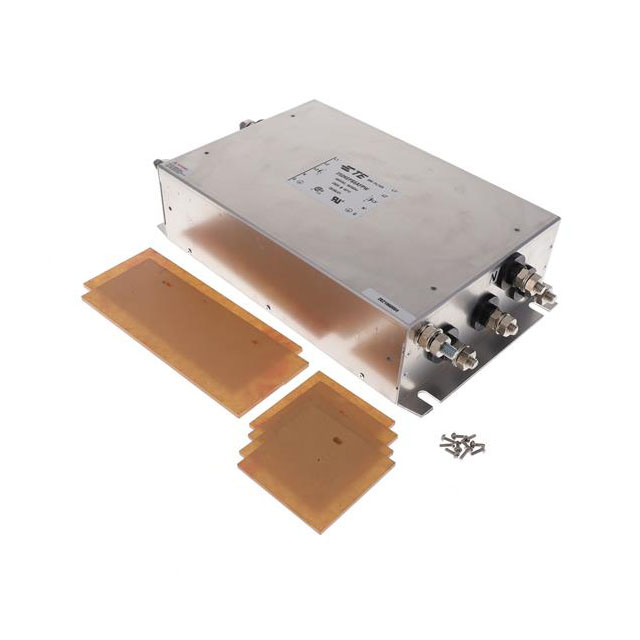

The 250KEPS6AFPW is a three-phase superior performance EMI power line filter manufactured by TE Connectivity Corcom. It supports a rated voltage of 440 VAC and a current rating of 250 A at operating frequencies of 50 Hz and 60 Hz. The unit features chassis mounting with screw termination and has a maximum leakage current of 20 mA. Physical dimensions are 373 mm in length, 220 mm in width, and 91 mm in height. It operates within a temperature range of -25 C to +85 C and holds UL and CSA compliance certifications.
Feature Summary
- Provides superior performance electromagnetic interference filtering for three-phase power systems
- Designed for high-current industrial applications with a 250 A continuous rating
- Utilizes a robust chassis mount configuration with threaded bolt flange installation
Applications
- Industrial machinery power conditioning
- Three-phase motor drive input protection
- Heavy-duty manufacturing equipment noise suppression
Procurement Notes
Verify the exact suffix against official TE Connectivity documentation to confirm terminal style and mounting variations. Confirm current availability status as distribution channels may list restricted supply or end-of-life conditions. Ensure mechanical fitment matches the specified chassis dimensions before procurement.
Selection Notes
Select this component when three-phase EMI attenuation is required for loads exceeding 200 A. Verify that the 440 VAC rating aligns with the system voltage. Consider the physical footprint constraints due to the large chassis mount design. Ensure the operating environment stays within the specified thermal limits.
Part Context
This part belongs to the KE series of power line filters from TE Connectivity Corcom. The series is engineered for demanding industrial environments requiring reliable noise suppression. The specific model integrates single-stage filtering capabilities into a durable metal housing suitable for permanent infrastructure installation.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's selector guide for cross-reference options based on identical electrical ratings.
