Product Detailed Parameters
- Description：LINE FLTR 520VAC 250A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：250 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

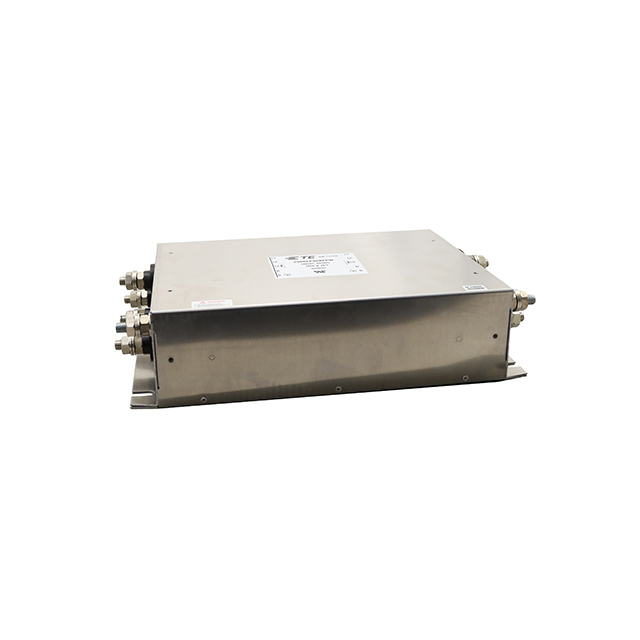

The TE Connectivity Corcom Filters 250KEPS6BFPW is a three-phase superior performance EMI power line filter rated for 250 A and 520 VAC. Designed for chassis mounting with screw terminals, it operates at 50 Hz or 60 Hz frequencies. The component features a low leakage current of 20 mA and complies with UL and CSA standards. Its physical dimensions are 373 mm in length, 220 mm in width, and 91 mm in height, supporting an operating temperature range from -25°C to +85°C.
Feature Summary
- Provides superior performance electromagnetic interference filtering for three-phase power systems
- Engineered for robust chassis mounting applications using screw terminal connections
- Maintains low leakage current characteristics suitable for sensitive equipment protection
Applications
- Industrial power conditioning systems requiring high-current filtration
- Three-phase machinery interfacing with sensitive electronic controls
- Heavy-duty electrical infrastructure demanding compliance with safety certifications
Procurement Notes
Verify the specific manufacturing lot date and authenticity through authorized TE Connectivity channels before acquisition. Confirm that the screw terminal configuration matches the existing panel design requirements. Ensure that the thermal environment remains within the specified operational limits to maintain filter efficacy and longevity.
Selection Notes
Select this model when three-phase filtering is required for currents up to 250 A at 520 VAC. Evaluate the chassis mount constraint against available panel space due to its substantial physical footprint. Consider the screw terminal interface for secure wiring connections in high-vibration industrial environments.
Part Context
This component belongs to the Corcom P series of power line filters manufactured by TE Connectivity. It serves as a specialized solution for mitigating conducted emissions in high-power three-phase circuits. The product aligns with industry standards for electromagnetic compatibility in demanding electrical installations.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity resources for potential obsolescence management or equivalent series alternatives.
