Product Detailed Parameters
- Description：LINE FLTR 440VAC 250A CHASS MNT
- Series：KEV
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：250 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

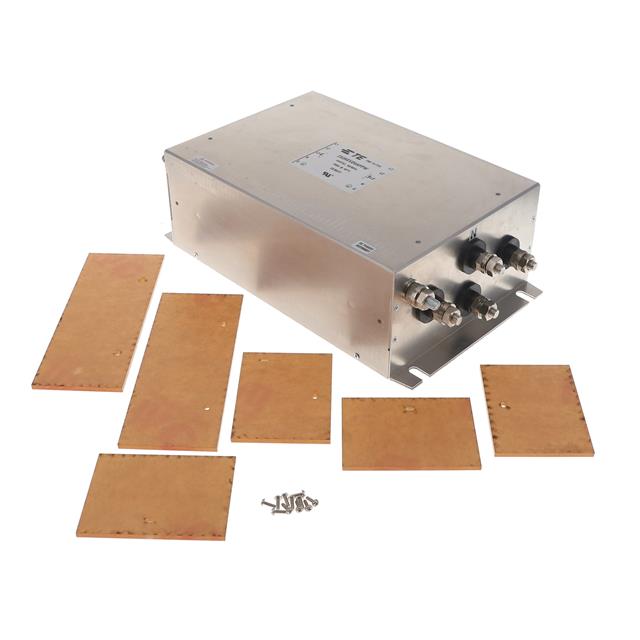

The TE Connectivity Corcom Filters 250KEVD6AFPW is a three-phase superior performance EMI power line filter designed for chassis mounting. It features a dual-stage configuration with screw terminal block connections. The unit operates at 440 VAC and supports a current rating of 250 A at 50 Hz or 60 Hz frequencies. Physical dimensions are 373 mm in length, 220 mm in width, and 91 mm in height. The device has a maximum leakage current of 20 mA and functions within an operating temperature range of -25°C to +85°C. It holds UL and CSA compliance certifications.
Feature Summary
- Dual-stage filtering architecture for enhanced electromagnetic interference suppression
- Chassis mount design with screw terminal block termination
- Superior performance classification for demanding industrial environments
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Heavy-duty manufacturing equipment
Procurement Notes
Verify the specific suffix requirements against your system voltage and connection needs. Confirm availability status as supply conditions may vary. Ensure mechanical fitment matches the chassis opening dimensions. Check for updated compliance documentation relevant to your region before finalizing procurement orders.
Selection Notes
Select this component when high current capacity and superior noise attenuation are required for three-phase AC lines. Compare leakage current specifications against safety standards. Verify that the chassis mounting style aligns with the enclosure design. Ensure the thermal environment stays within the specified operational temperature limits.
Part Context
This part belongs to the KEM series of power line filters from TE Connectivity Corcom Filters. The series focuses on high-current applications requiring robust EMI/EMC protection. The model number indicates specific electrical ratings and termination types within this product family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official manufacturer resources for cross-reference data.
