25AYA6A

Overview

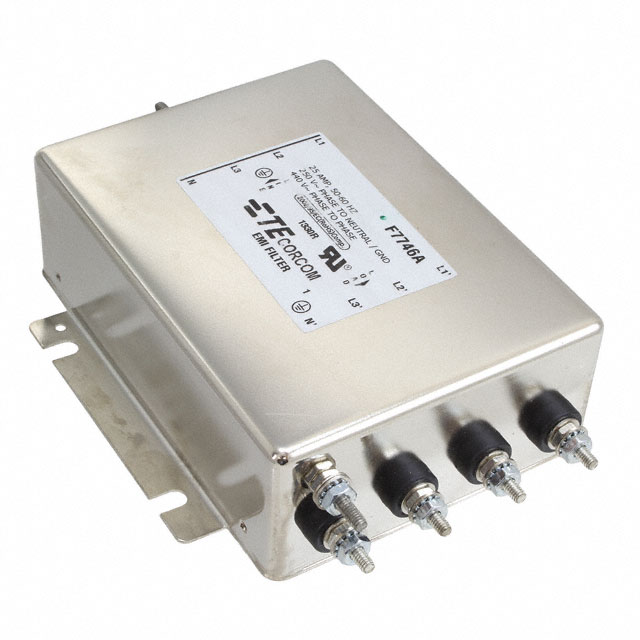

The TE Connectivity Corcom Filters 25AYA6A is a three-phase (Wye) EMC/EMI line filter designed for industrial applications. It supports a rated current of 25 A and operates at nominal voltages of 480 VAC, with compatibility for 50/60 Hz frequencies. The unit features a single-stage filtering configuration to mitigate electromagnetic interference. Installation is facilitated via threaded posts sized 8-32, ensuring secure mounting within power distribution systems.

Feature Summary

• Provides effective mitigation of electromagnetic interference in three-phase power circuits
• Engineered for robust performance in industrial power distribution environments
• Utilizes a single-stage design to simplify integration into existing electrical architectures

Applications

• Industrial automation machinery power supplies
• Manufacturing plant electrical distribution panels
• Heavy-duty motor drive input stages

Procurement Notes

Verify specific voltage ratings and current capacity requirements against the official datasheet before ordering. Confirm that the 8-32 threaded post mounting style aligns with your chassis or panel specifications. Ensure compliance with local safety standards and regulatory certifications required for your specific deployment region.

Selection Notes

Select this component when a dedicated three-phase solution is required for high-current industrial loads. The Wye configuration dictates system topology compatibility. Evaluate space constraints relative to the threaded post mounting method compared to alternative DIN-rail or screw-mount options.

Part Context

This model belongs to the TE Connectivity Corcom Filters lineup, specializing in power line filtration. The series targets demanding environments where signal integrity and equipment protection are critical. It complements other single and multi-phase filters within the broader portfolio.

Replacement Considerations

Consult official manufacturer substitution lists for verified alternatives. Generic cross-references may not match the specific Wye configuration or 8-32 mounting interface.
