25FCD10

Overview

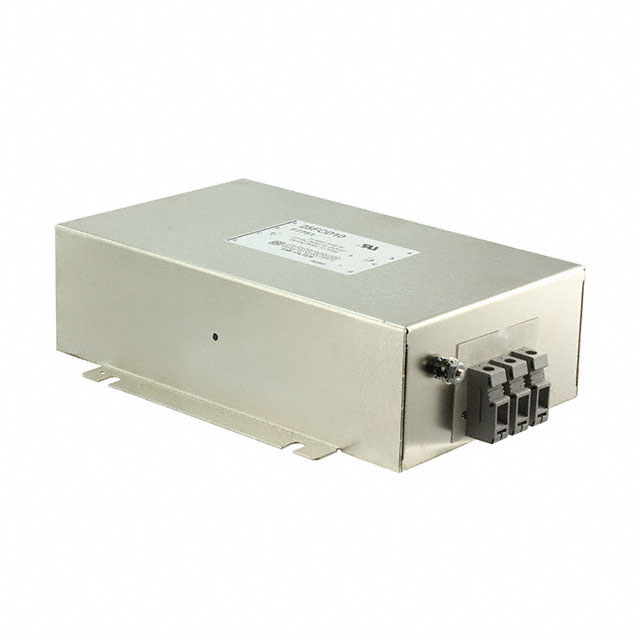

The TE Connectivity Corcom Filters 25FCD10 is a three-phase (Delta) EMC/EMI line filter designed for general-purpose applications. It features a two-stage configuration with a rated current of 25 A and a voltage rating of 480 VAC at 50/60 Hz. The component utilizes terminal block connections and is constructed for flange mounting. Certified by UL and CSA, it operates within a temperature range of -10°C to +85°C, providing robust interference suppression for industrial power systems.

Feature Summary

• Three-phase Delta configuration for balanced power line filtering
• Two-stage design for enhanced EMI/EMC attenuation
• Flange mount construction for secure chassis integration
• Terminal block termination for reliable electrical connection

Applications

• Industrial machinery power conditioning
• General-purpose three-phase equipment protection
• Electrical panel interference suppression

Procurement Notes

Verify the specific suffix or variant against official TE Connectivity documentation to ensure compatibility with your system requirements. Confirm that the terminal block interface matches your wiring specifications. Check for any recent product change notices regarding manufacturing updates. Ensure the flange mounting dimensions align with your enclosure design before finalizing procurement.

Selection Notes

Select this model when a three-phase Delta solution is required for 480VAC systems. The 25A rating suits moderate load applications. Consider the two-stage architecture if higher attenuation is needed compared to single-stage alternatives. Verify that the operating temperature range meets environmental conditions. Ensure the flange mount style fits the available space in the assembly.

Part Context

This component belongs to the Corcom FCD series of power line filter modules. The series is engineered for industrial environments requiring reliable noise reduction. The 25FCD10 specifically addresses three-phase needs, distinguishing it from single-phase counterparts in the lineup. It represents a standard solution for general-purpose electromagnetic compatibility in AC power distribution networks.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Generic cross-references may not match the two-stage performance or flange dimensions. Ensure any substitute maintains the 25A current rating and 480VAC voltage capability. Verify terminal block compatibility to avoid rewiring issues.
