Product Detailed Parameters
- Description：LINE FILTER 520VAC 25A CHASS MNT
- Series：KEM
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：25 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

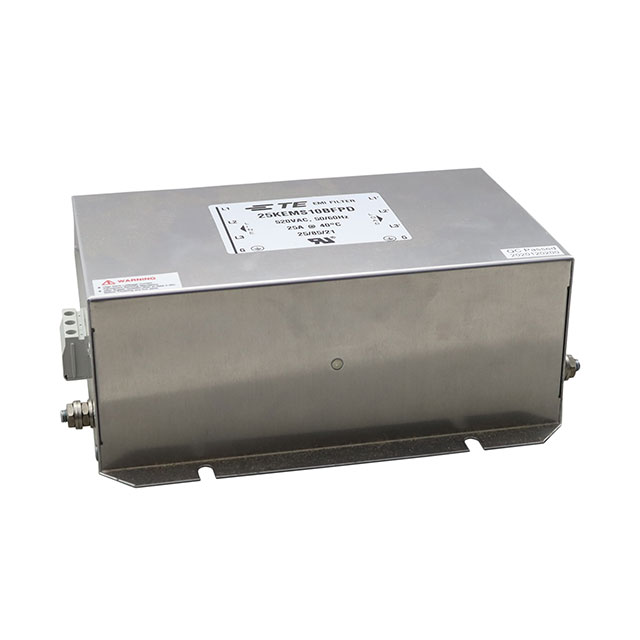

The TE Connectivity Corcom Filters 25KEMS10BFPD is a three-phase power line filter designed for high-current industrial applications. It features a single-stage configuration with a maximum continuous operating voltage of 520 VAC and a current rating of 25 A. The unit utilizes stud or shockproof terminals for secure mounting and connection, supporting chassis installation in demanding environments.
Feature Summary
- Provides electromagnetic interference mitigation through a single-stage filtering architecture
- Engineered for high-capacity power distribution systems requiring robust terminal connections
- Constructed to withstand industrial operational conditions with durable chassis mount design
Applications
- Industrial automation machinery
- High-power motor drives
- Three-phase power conditioning systems
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential supply chain variations. Confirm technical specifications against the official datasheet prior to integration. Ensure compatibility with existing panel cutouts and terminal configurations. Validate regulatory compliance requirements for the target deployment region.
Selection Notes
Select this model for applications requiring 25 A three-phase filtration at 520 VAC. Evaluate space constraints for chassis mounting and verify terminal accessibility for stud connections. Consider thermal management requirements associated with high-current operation in enclosed enclosures.
Part Context
This component belongs to the KEM series of power line filters from TE Connectivity Corcom Filters. The series offers various current ratings and stage configurations for different power quality needs. The 25KEMS10BFPD specifically addresses high-current three-phase filtering requirements within this product family.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference electrical ratings and physical dimensions before considering alternatives.
