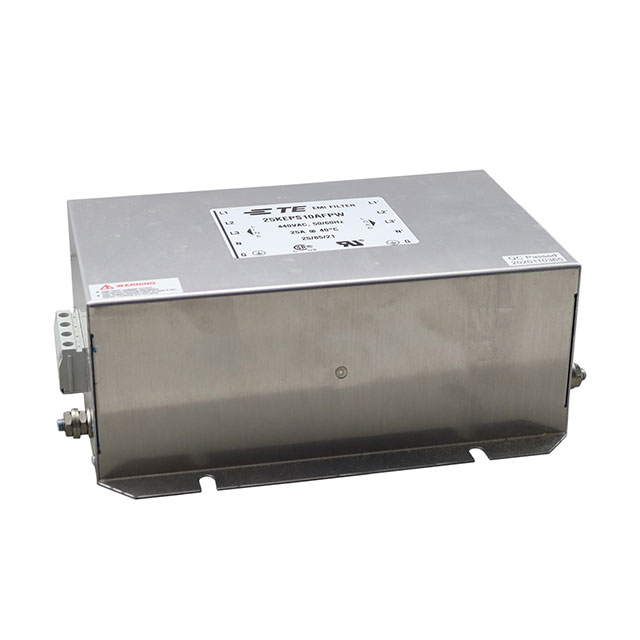

25KEPS10AFPW

Overview

The TE Connectivity Corcom Filters 25KEPS10AFPW is a three-phase power line filter designed for industrial applications. It features a 440 VAC voltage rating and a 25 A current capacity. The unit utilizes terminal block termination and chassis mount installation. Key electrical parameters include an 8.5 mA leakage current and operation at 50 Hz or 60 Hz frequencies. Physical dimensions are 202 mm in length, 135 mm in width, and 80 mm in height. It operates within a temperature range of -25°C to +85°C and holds UL and CSA compliance certifications.

Feature Summary

• Provides electromagnetic interference mitigation for three-phase power systems
• Engineered for high-performance superior filtering capabilities
• Supports secure chassis mounting with terminal block connections

Applications

• Industrial automation equipment
• Climate control systems
• Power conditioning units

Procurement Notes

Verify the obsolete status before procurement as the manufacturer has announced discontinuation. Confirm availability through authorized distributors for remaining stock. Ensure compatibility with existing chassis mounting configurations and terminal block wiring schemes. Validate that the 440 VAC rating meets specific system requirements. Check for alternative components if long-term supply stability is required.

Selection Notes

Select this component for three-phase circuits requiring 25 A handling at 440 VAC. Consider the physical dimensions for enclosure space constraints. Verify terminal block suitability for wire gauge and connection type. Ensure environmental conditions fall within the specified operating temperature range. Confirm regulatory compliance needs match UL and CSA certifications.

Part Context

This model belongs to the KEP series from TE Connectivity Corcom Filters. The series includes various current ratings and voltage options for three-phase power line filtering. Similar models share common mounting styles and termination types but differ in electrical specifications. The product line focuses on robust EMI/EMC performance for industrial environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation due to the discontinued status.
