Product Detailed Parameters
- Description：LINE FILTER 520VAC 25A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：25 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

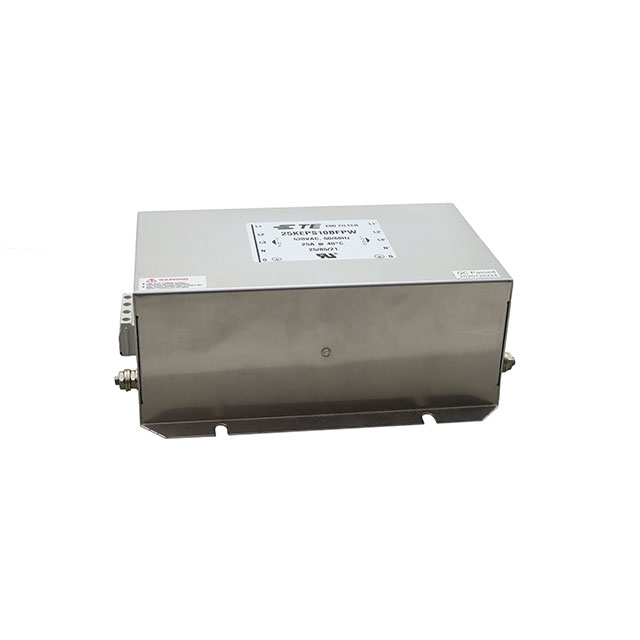

The TE Connectivity Corcom Filters 25KEPS10BFPW is a three-phase superior performance EMI filter designed for industrial power line conditioning. It features a chassis mount configuration with quick connect and screw termination options. The unit operates at 520 VAC with a 25 A current rating at 50 Hz or 60 Hz frequencies. Physical dimensions are 202 mm in length, 135 mm in width, and 80 mm in height. It maintains a leakage current of 8.5 mA and functions within a temperature range of -25 C to +85 C. The component holds UL and CSA compliance certifications.
Feature Summary
- Provides superior electromagnetic interference mitigation for three-phase wye systems
- Supports dual termination methods including quick connect and screw terminals
- Engineered for robust chassis mounting in industrial environments
Applications
- Industrial automation machinery power conditioning
- Climate control system input filtering
- Three-phase equipment noise suppression
Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity documentation before procurement. Confirm that the required termination style matches the available quick connect and screw options. Ensure the operating voltage and current ratings align with the system requirements. Check for any regional distribution restrictions or end-of-life status updates directly from the supplier.
Selection Notes
Select this model when superior EMI attenuation is required for three-phase applications. Ensure the chassis mounting space accommodates the specified physical dimensions. Verify that the terminal type compatibility matches the existing wiring infrastructure. Confirm that the leakage current specification meets safety standards for the intended installation environment.
Part Context
This component belongs to the KEP series of power line filters manufactured by TE Connectivity under the Corcom brand. The series focuses on high-performance electromagnetic interference reduction for industrial power systems. The specific model variant indicates a 25 A rating and 520 VAC capability within the broader product family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official TE Connectivity documentation for direct replacements or updated equivalents.
