25KESS6AFPW

Overview

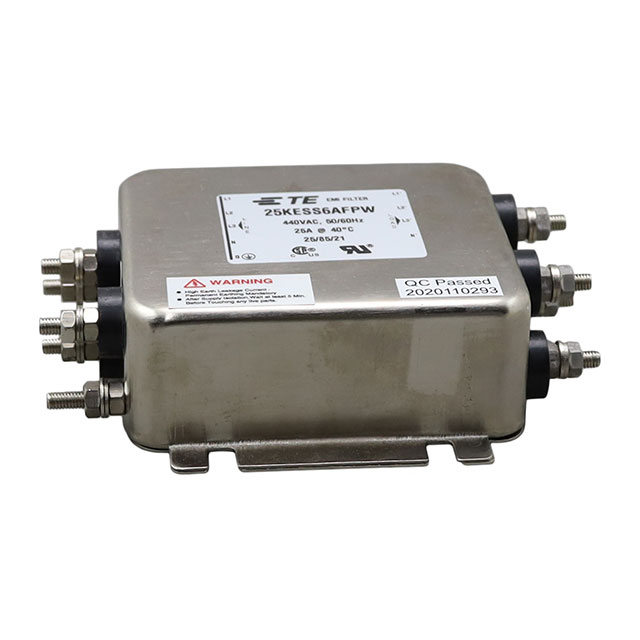

The 25KESS6AFPW is a three-phase EMI/EMC power line filter manufactured by TE Connectivity under the Corcom brand. It features a single-stage design rated for 25 A current and 440 VAC voltage at 50 Hz operation. The unit utilizes threaded bolt flange mounting with screw termination. Key electrical specifications include a maximum leakage current of 5 mA and an operating temperature range from -25 °C to +85 °C. Physical dimensions are 127 mm in length, 96 mm in width, and 40 mm in height. The component holds UL and CSA compliance certifications.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Utilizes a robust chassis mount configuration with threaded bolt connections
• Designed for high-temperature industrial environments up to 85 °C

Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Factory automation equipment filtering

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels due to obsolete status. Confirm physical compatibility with existing mounting structures as dimensions are fixed. Ensure replacement parts meet identical voltage and current ratings to maintain system safety standards. Request original datasheets to validate certification marks before integration into regulated equipment designs.

Selection Notes

Select this model when three-phase filtering is required for 440 VAC systems with 25 A continuous load. The flange mount style suits panel installations requiring secure mechanical attachment. Verify that the 50 Hz frequency rating aligns with the target power grid. Consider thermal management capabilities within the specified -25 °C to +85 °C operational window for reliable performance.

Part Context

This component belongs to the KES series of three-phase power filters from TE Connectivity Corcom. The series offers various current ratings for industrial EMC applications. The 25KESS6AFPW represents a specific variant optimized for 25 A loads. It shares mounting characteristics with other KES models but differs in internal capacitance and inductance values tailored to its current rating.

Replacement Considerations

The manufacturer has marked this part as obsolete. No direct public substitute part numbers are confirmed in available documentation. Evaluate alternative three-phase filters with matching 25 A ratings and compatible flange mounting interfaces.
