Product Detailed Parameters
- Description：LINE FILTER 520VAC 20A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

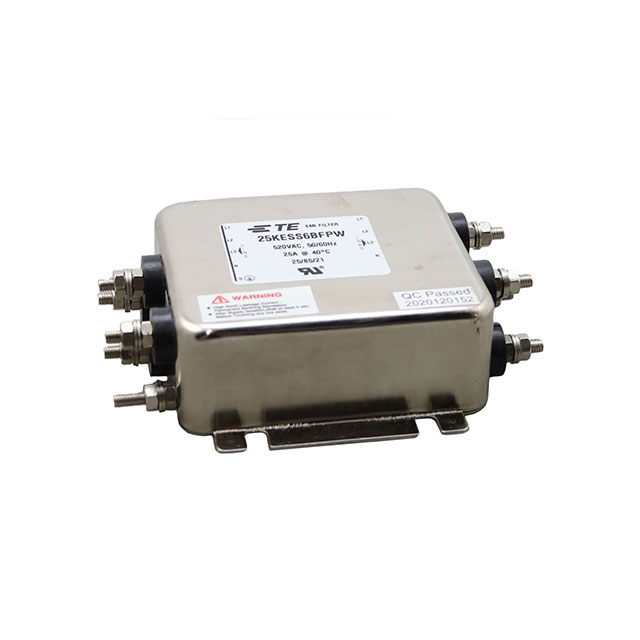

The TE Connectivity Corcom Filters 25KESS6BFPW is a three-phase general-purpose EMI filter designed for chassis mounting. It features screw termination and supports a voltage rating of 520 VAC with a current rating of 20 A. The unit operates at frequencies of 50 Hz and 60 Hz, with a maximum leakage current of 6 mA. Certified by UL and CSA, it functions within an ambient temperature range of -25°C to +85°C.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power lines
- Designed for secure chassis mounting using screw terminations
- Complies with UL and CSA safety standards
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- General purpose electrical equipment noise reduction
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential supply chain variations. Confirm specific lot codes and certification documents match project requirements. Check for obsolescence notices as availability may be limited. Ensure mechanical dimensions align with existing chassis cutouts before procurement.
Selection Notes
Select this model when a three-phase configuration is required for 520 VAC systems. Verify that the 20 A current rating meets load demands. Consider the chassis mount style and screw termination type for integration. Compare against other KES series variants if higher current or different voltage ratings are needed.
Part Context
This component belongs to the KES series of power line filters from TE Connectivity Corcom Filters. The series offers various current and voltage ratings for three-phase applications. The 25KESS6BFPW specifically addresses mid-range current needs in industrial environments requiring robust EMI filtering capabilities.
Replacement Considerations
Consult official TE Connectivity documentation for direct substitutes. Evaluate alternative part numbers within the KES series based on current and voltage specifications. Verify compatibility with existing mounting hardware and termination styles.
