25QHM53C1.5-10.000

Oscillators Overview

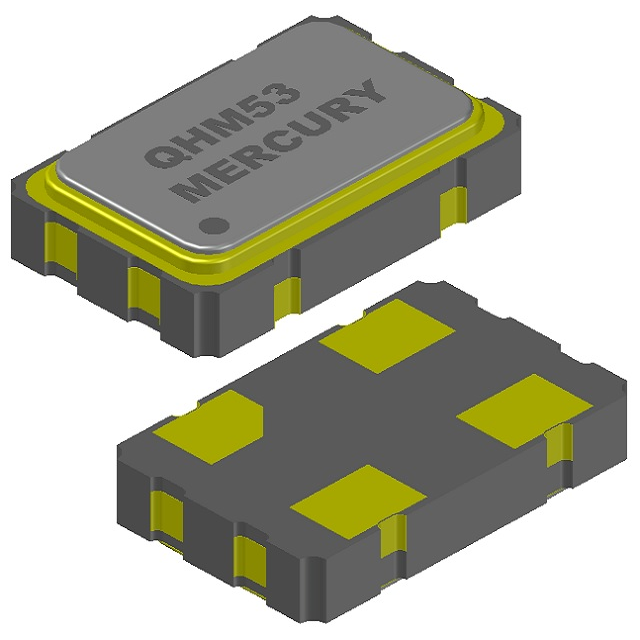

The 25QHM53C1.5-10.000 is a QuikXO spread spectrum crystal oscillator manufactured by Mercury Electronics Ind. Co. Ltd. It operates at a center frequency of 10.000 MHz with CMOS output levels. The device supports a supply voltage range of 2.5V to 3.3V and features enable/disable control functionality. It utilizes a 4-SMD, no lead package configuration and is designed for low electromagnetic interference applications.

Oscillators Feature Summary

• QuikXO EMI reduction spread spectrum technology
• CMOS output signal compatibility
• Enable/Disable control pin functionality

Oscillators Applications

• Low EMI digital systems
• Clock generation for high-speed logic
• Embedded system timing references

Oscillators Procurement Notes

Verify the specific operating temperature range and load capacitance requirements against the official datasheet before integration. Confirm that the 2.5V to 3.3V supply voltage aligns with the target circuit design. Ensure the 4-SMD package footprint matches the PCB layout specifications to guarantee proper soldering and mechanical stability during assembly processes.

Oscillators Selection Notes

Select this component when low electromagnetic interference is critical for system performance. The spread spectrum feature helps reduce peak emissions. Verify that the CMOS output swing meets the input threshold requirements of downstream logic circuits. Consider the enable/disable capability if power management or clock gating is required in the application design.

Oscillators Part Context

This part belongs to the Mercury QuikXO series of spread spectrum oscillators. These devices are engineered to minimize radiated emissions through frequency modulation techniques. The series offers various center frequencies and packaging options to suit different embedded timing needs while maintaining stable operation across industrial temperature ranges.

Oscillators Replacement Considerations

Check for direct substitutes within the same QuikXO family offering identical 10.000 MHz center frequency and CMOS output. Verify package compatibility and electrical parameter alignment before substitution. Consult official manufacturer cross-reference lists for confirmed equivalent parts.
