25QHM572D2.0-59.904

Oscillators Overview

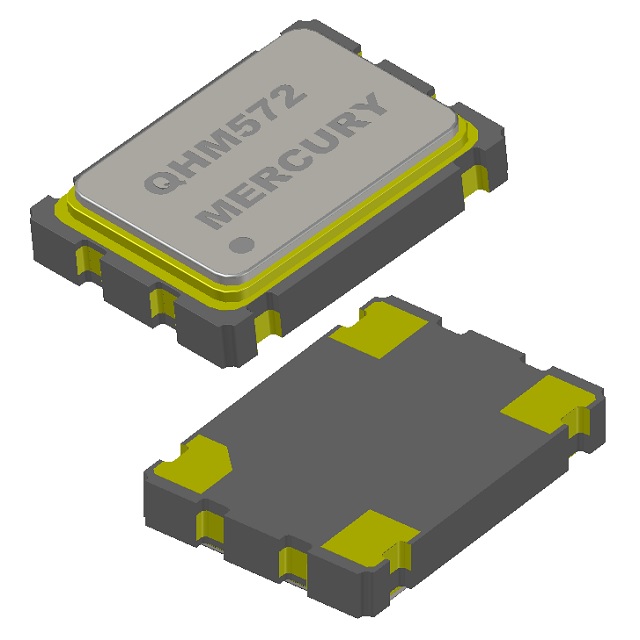

The 25QHM572D2.0-59.904 is a QuikXO spread spectrum crystal oscillator manufactured by Mercury Electronics Ind. Co. Ltd. It operates at a nominal frequency of 59.904 MHz with a CMOS output signal. The device features down-spread EMI reduction capability, characterized by a -2% deviation. It functions within a supply voltage range of 2.5V and utilizes a surface-mount SMD 7050-4P package. This component is designed for applications requiring precise timing with minimized electromagnetic interference.

Oscillators Feature Summary

• Integrates spread spectrum technology to reduce electromagnetic interference through frequency modulation.
• Provides stable CMOS logic output signals suitable for digital circuit synchronization.
• Utilizes a compact surface-mount package design for efficient PCB layout integration.

Oscillators Applications

• High-speed data handling systems requiring precise clock synchronization
• FPGA timing configurations demanding low jitter performance
• Digital communication interfaces utilizing CMOS-compatible clock sources

Oscillators Procurement Notes

Verify the specific ordering suffix and package variant against the manufacturer's current documentation to ensure compatibility with your design requirements. Confirm that the component meets all necessary regulatory compliance standards for your target market. Cross-reference the part number with official distributor catalogs to validate availability status and lead times prior to finalizing procurement plans.

Oscillators Selection Notes

Select this oscillator when system design requires active EMI reduction alongside standard CMOS interface compatibility. Ensure the 2.5V supply voltage aligns with the target platform's power architecture. Verify that the 7050-4P footprint matches the PCB silkscreen and copper pad specifications. Consider the -2% spread depth relative to the sensitivity of adjacent sensitive circuits during the initial schematic capture phase.

Oscillators Part Context

This component belongs to the QuikXO series of spread spectrum crystal oscillators from Mercury Electronics. The series focuses on providing timing solutions that mitigate electromagnetic interference in high-density electronic environments. The model designation indicates specific frequency and package characteristics unique to this product line.

Oscillators Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's official cross-reference documentation or authorized distributor databases for verified equivalent components before attempting substitution.
