25QHTF32-64.980-PD

Oscillators Overview

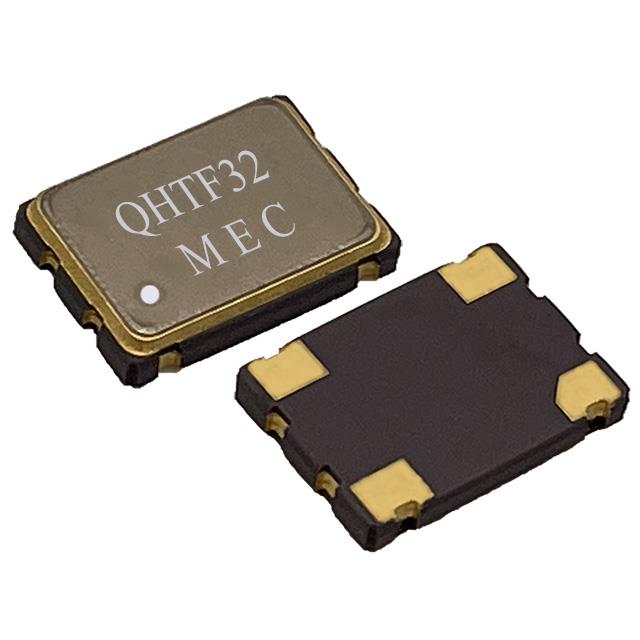

The 25QHTF32-64.980-PD is a standard crystal oscillator manufactured by Mercury Electronics Ind. Co. Ltd. It operates at a frequency of 64.98 MHz and utilizes LVCMOS output logic levels. The device functions with a supply voltage of 2.5V and includes a standby or power-down control feature for energy management. It is housed in a compact 4-SMD, No Lead package, suitable for surface-mount applications requiring precise clock signals.

Oscillators Feature Summary

• LVCMOS output interface
• Standby power-down capability
• Compact SMD form factor

Oscillators Applications

• General purpose clock generation
• Digital signal processing systems
• Communication equipment timing

Oscillators Procurement Notes

Verify the exact frequency tolerance and load capacitance requirements against your circuit design specifications before ordering. Confirm that the 2.5V supply voltage aligns with your system's power rails. Ensure the 4-SMD package footprint matches your PCB layout constraints to guarantee proper assembly and electrical connectivity.

Oscillators Selection Notes

Choose this component when a stable 64.98 MHz reference is required with low power consumption options. The LVCMOS output ensures compatibility with standard digital logic families. Consider the standby feature if power efficiency during idle periods is a critical design parameter for the target application environment.

Oscillators Part Context

This part belongs to the 25QHTF32 series of quartz crystal oscillators from Mercury Electronics. The series offers various frequencies within the standard XO category. The 'PD' suffix indicates the inclusion of a power-down pin, distinguishing it from non-controllable variants in the same package family.

Oscillators Replacement Considerations

Direct substitutes include other 64.98 MHz LVCMOS oscillators in 4-SMD packages with 2.5V operation and standby functionality. Verify pinout compatibility and thermal characteristics when cross-referencing with alternative manufacturers.
