25QHTF57-92.900-PD

Oscillators Overview

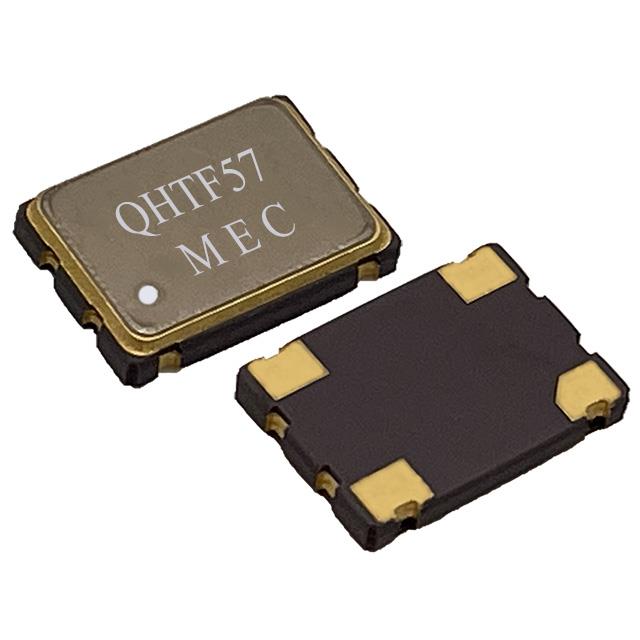

The 25QHTF57-92.900-PD is a standard crystal oscillator manufactured by Mercury Electronics Ind. Co., Ltd. It operates at a nominal frequency of 92.9 MHz with an LVCMOS output logic level. The device requires a 2.5V supply voltage and features a power-down function for standby control. It is housed in a 4-SMD, No Lead package with dimensions of 7.0 x 5.0 mm. The component supports surface mount technology and is designed for applications requiring precise clock signals within specified electrical parameters.

Oscillators Feature Summary

• LVCMOS output logic interface
• Integrated power-down standby mode
• Surface mount 4-SMD no lead package

Oscillators Applications

• General purpose clock signal generation
• Digital circuit timing references
• Embedded system clock sources

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure the correct package type and tape/reel configuration match your assembly requirements. Confirm that the 2.5V supply voltage aligns with your system design before procurement. Check for any specific handling instructions related to the surface mount package during storage and installation processes.

Oscillators Selection Notes

Select this component when a 92.9 MHz clock signal with LVCMOS outputs is required. Ensure the 2.5V operating voltage is compatible with the target system. Consider the 7.0 x 5.0 mm footprint for PCB layout constraints. Verify temperature range requirements against the specified operating limits.

Oscillators Part Context

This part belongs to the Mercury Electronics XO series, which includes various frequencies and package options. The 25QHTF57 series typically offers standard performance levels suitable for general electronic applications. Other variants in this family may differ in frequency, voltage, or package style while maintaining similar functional characteristics.

Oscillators Replacement Considerations

Direct substitutes must match the 92.9 MHz frequency, LVCMOS output, 2.5V supply, and 4-SMD package. Cross-reference with other manufacturers offering equivalent specifications. Verify pin compatibility and thermal characteristics before replacing the original component.

Oscillators FAQ

What is the output logic type of the 25QHTF57-92.900-PD?

The output logic type is LVCMOS.

Does this oscillator support power management features?

Yes, it includes a standby (power down) function.
