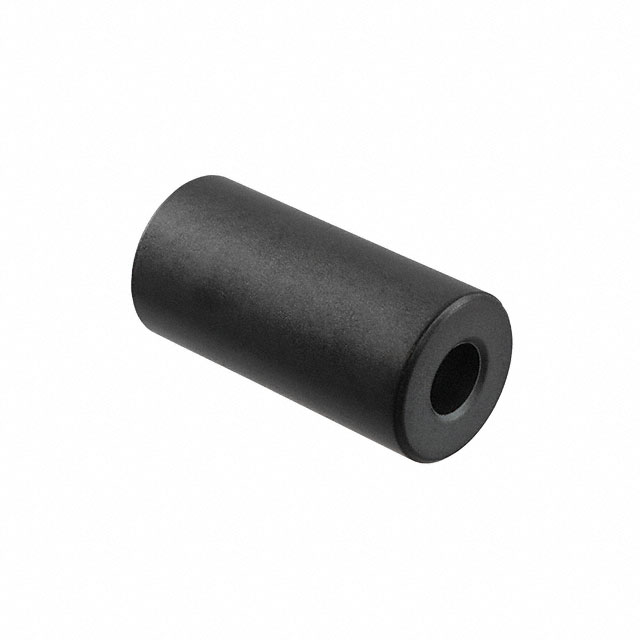

2631480102

$0.73

Description：FERRITE CORE 140OHM SOLID 5.08MM
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk

SKU:bd92ecb4dc6a Category: Cable Ferrites Brand: Fair-Rite Products Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE 140OHM SOLID 5.08MM
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk
Type：Round
Design：Solid
Impedance @ Frequency：140Ohm @ 100MHz
Material：31
Inner Dimension：0.200" Dia (5.08mm)
Outer Dimension：0.485" Dia (12.32mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.500" (12.70mm)

Download product information

2631480102

Overview

Fair-Rite 2631480102 is a solid round ferrite cable core designed for EMI suppression. It utilizes Material 31, providing an impedance of 140 ohms at 100 MHz. The component features an inner diameter of 5.08 mm (0.200 inches), an outer diameter of 12.32 mm (0.485 inches), and a length of 12.70 mm (0.500 inches). It is classified as a free-hanging shield bead suitable for round cables.

Feature Summary

Provides electromagnetic interference suppression through high-impedance characteristics at specific frequencies
Constructed from Material 31 optimized for noise reduction in the specified frequency range
Designed as a solid, free-hanging core for easy installation on round cables

Applications

EMI suppression on round cables
Common mode noise reduction in electronic assemblies
Shield bead applications for signal integrity

Procurement Notes

Verify material composition and impedance specifications against current Fair-Rite datasheets before integration. Confirm dimensional tolerances for inner and outer diameters to ensure proper fit on target cable assemblies. Check RoHS compliance status and availability directly with authorized distributors or the manufacturer.

Selection Notes

Select this part when a solid round core with Material 31 properties is required for EMI suppression. Ensure the cable diameter falls within the 5.08 mm inner diameter limit. Consider the 140 ohm impedance at 100 MHz for noise profile matching. Verify that the free-hanging form factor meets mechanical constraints of the application.

Part Context

This component belongs to the Fair-Rite Round Cable EMI Suppression Cores family. It is distinct from toroidal or multi-aperture cores by its solid cylindrical geometry. Material 31 is specifically engineered for broadband noise suppression, differentiating it from other materials in the Fair-Rite portfolio tailored for power or signal line filtering.
