2643023002

Overview

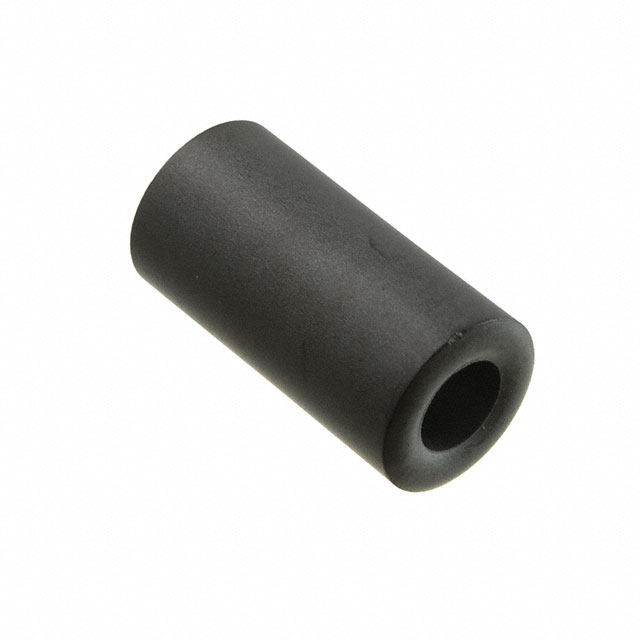

Fair-Rite 2643023002 is a solid, free-hanging ferrite cable core manufactured from Material 43. It provides an impedance of 145 ohms at 100 MHz for EMI suppression. The component features a circular design with an internal diameter of 0.280 inches (7.11 mm), an external diameter of 0.562 inches (14.28 mm), and a length of 0.600 inches (15.24 mm).

Feature Summary

• Solid construction designed for direct cable clamping without splitting.
• Utilizes Material 43 composition for effective broadband noise attenuation.

Applications

• Electromagnetic interference suppression on cables
• Shield bead applications

Procurement Notes

Verify the specific impedance rating against project requirements, as sources indicate values of 118 ohms or 145 ohms at 100 MHz. Confirm physical dimensions match the target cable diameter. Ensure compliance with RoHS standards if required by the end application specifications.

Selection Notes

Select this part when a solid, non-split ferrite bead is required for permanent installation. Material 43 is suitable for lower frequency noise suppression. Verify that the 0.280-inch inner diameter accommodates the cable size to ensure a secure fit.

Part Context

This component belongs to the Fair-Rite ferrite cable core series, specifically designated as a shield bead. It is categorized under EMI suppression components and utilizes the standard 43 material formulation known for its magnetic properties in the lower frequency spectrum.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
