2643163951

Overview

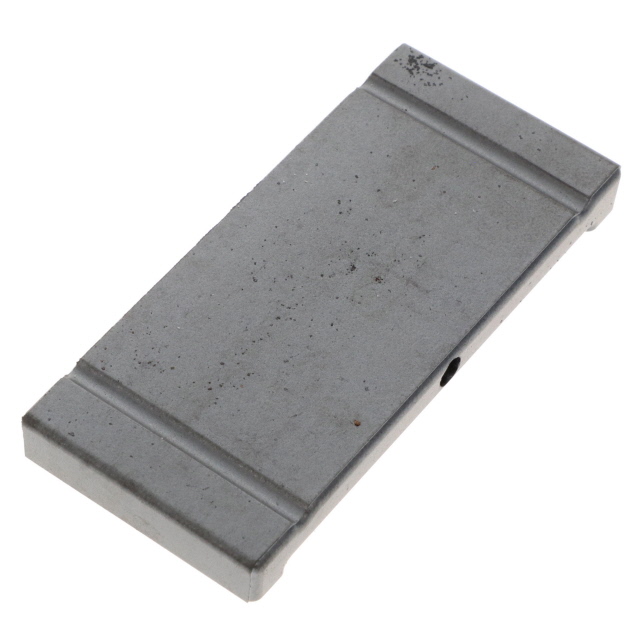

Fair-Rite 2643163951 is a split ferrite core designed for flat ribbon cables, utilizing Material 43. It provides an impedance of 290 ohms at 100 MHz. The component features a split design for easy installation over existing cable assemblies without disconnection. It operates within a temperature range of -55°C to +125°C and is RoHS compliant.

Feature Summary

• Split construction allows snap-on installation over flat ribbon cables
• Material 43 composition optimized for high-frequency noise suppression
• Controlled impedance characteristics for EMI reduction

Applications

• Electromagnetic interference suppression on flat ribbon cables
• Signal integrity enhancement in data transmission lines
• Noise filtering in electronic equipment cabling

Procurement Notes

Verify the specific impedance value (290 ohms @ 100 MHz) against your frequency requirements. Confirm compatibility with the target flat cable width and thickness. Check for RoHS compliance status if required by your manufacturing standards. Ensure the split design accommodates the cable assembly during installation.

Selection Notes

Select this part when dealing with flat ribbon cables requiring high-impedance noise suppression at 100 MHz. Material 43 is suitable for frequencies above 10 MHz. The split form factor is critical for retrofitting or installing on pre-assembled cables. Compare dimensions against the cable profile to ensure a secure fit.

Part Context

This component belongs to Fair-Rite's line of ferrite cable cores specifically engineered for flat cable applications. It is distinct from toroidal or round cable cores due to its geometry and split design. The product is categorized under EMI suppression components used in signal and power line protection.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
