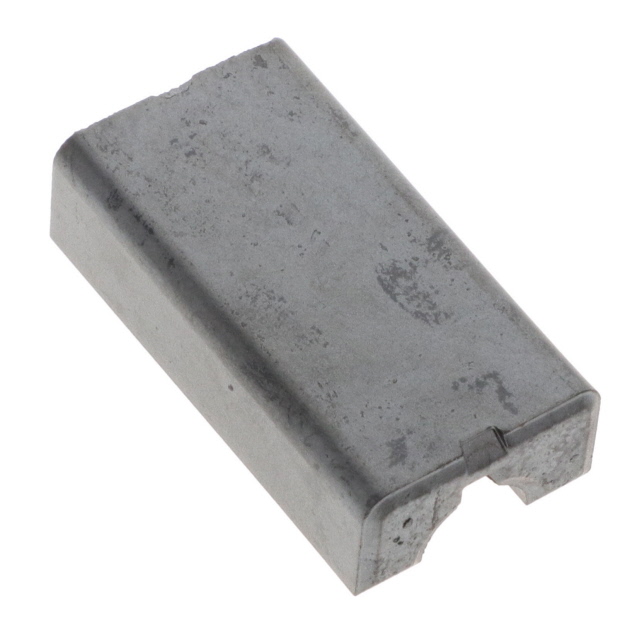

2643164251

$1.95

Description：FERRITE CORE 275 OHM SOLID 6.6MM
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk

SKU:30b10300cf3a Category: Cable Ferrites Brand: Fair-Rite Products Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE 275 OHM SOLID 6.6MM
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk
Type：Round
Design：Solid
Impedance @ Frequency：275Ohm @ 100MHz
Material：43
Inner Dimension：0.260" Dia (6.60mm)
Outer Dimension：0.591" W x 0.295" H (15.00mm x 7.50mm)
Ratings：-
Mounting Type：Free Hanging
Length：1.126" (28.60mm)

Download product information

2643164251

Overview

Fair-Rite 2643164251 is a split flat cable core utilizing Material 43 for EMI suppression. It provides an impedance of 275 ohms at 100 MHz. The component features an internal length of 27.95 mm, an external length of 38.35 mm, and an external width of 28.6 mm. The internal height is 3.3 mm with an external height of 9 mm. Designed for flat ribbon cables, it allows easy installation around conductors without disconnection.

Feature Summary

Split design enables installation on existing cables without breaking the circuit
Material 43 composition optimized for high-frequency noise attenuation
Flat geometry accommodates ribbon cable profiles effectively

Applications

EMI suppression for flat ribbon cables
Noise filtering in digital signal lines
Common mode choke applications for data buses

Procurement Notes

Verify current lifecycle status with Fair-Rite directly as availability information may be unclear. Confirm RoHS compliance requirements against specific project standards. Ensure the selected material grade matches the target frequency range for effective suppression performance.

Selection Notes

Select this part when flat cable integration is required. Material 43 offers balanced permeability for broadband noise reduction. Compare impedance values against other frequencies if operating conditions deviate from standard test points. Ensure physical dimensions fit within the available spatial constraints of the assembly.

Part Context

This component belongs to the Fair-Rite 26 series of ferrite cable cores. It is specifically categorized as a split round or flat cable EMI suppression core. The product line focuses on providing flexible noise control solutions for various cable types in electronic assemblies.

Replacement Considerations

Check Fair-Rite documentation for direct substitutes within the same material family. Verify that alternative parts maintain identical impedance characteristics at 100 MHz. Ensure physical compatibility with the target flat cable dimensions before substitution.
