2643170951

$0.98

Description：FERRITE CORE 115 OHM CLIP
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk

SKU:2d90a220a404 Category: Cable Ferrites Brand: Fair-Rite Products Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE 115 OHM CLIP
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk
Type：Flat
Design：Clip Together (Order Qty 2=1 Assembly)
Impedance @ Frequency：115Ohm @ 100MHz
Material：43
Inner Dimension：1.355" W x 0.033" H (34.42mm x 0.84mm)
Outer Dimension：1.775" W x 0.250" H (45.09mm x 6.35mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.500" (12.70mm)

Download product information

2643170951

Overview

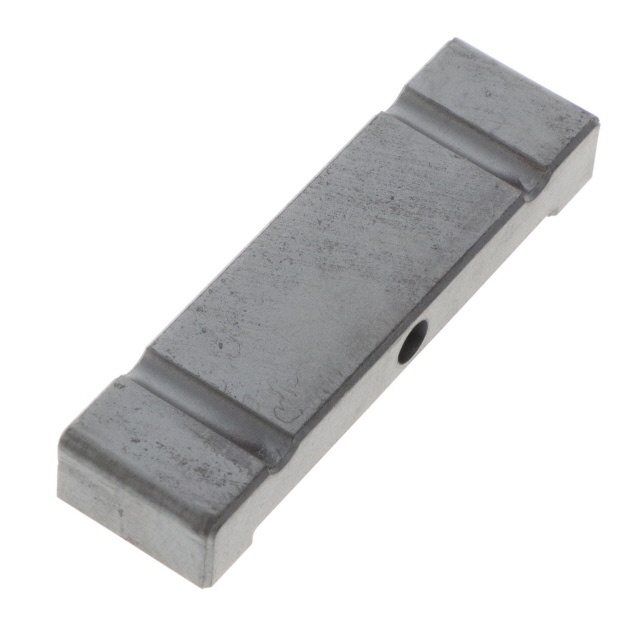

Fair-Rite 2643170951 is a clip-together ferrite cable core designed for EMI suppression on flat ribbon cables. It utilizes Fair-Rite Material 43, providing an impedance of 115 Ohms at 100 MHz. The component features a split design that clips together to enclose the cable. Internal dimensions are 34.42 mm width by 0.84 mm height (1.355" W x 0.033" H). It is classified as a free-hanging filter with a solid construction type.

Feature Summary

Split clip-together design allows installation over existing flat ribbon cables without disconnection
Material 43 composition provides high permeability for effective broadband noise attenuation
Free-hanging configuration enables flexible mounting in various electronic assemblies

Applications

EMI suppression for flat ribbon cables in computer peripherals
Noise filtering for data transmission lines in industrial equipment
Signal integrity enhancement for internal bus connections in consumer electronics

Procurement Notes

Verify the specific Material 43 designation and impedance tolerance against the manufacturer's current datasheet before integration. Confirm that the internal width of 34.42 mm accommodates the target cable bundle thickness. Ensure the clip mechanism engages securely to maintain consistent magnetic coupling during operation.

Selection Notes

Select this part when dealing with flat ribbon cables requiring broadband suppression around 100 MHz. Material 43 is suitable for frequencies between 1 MHz and 100 MHz. Compare internal dimensions against the cable assembly to ensure proper fit. Consider the clip-together form factor if field installation or retrofitting is required.

Part Context

This component belongs to the Fair-Rite 26 series of EMI suppression cores. The series includes toroidal, round cable, and flat cable variants. The 2643 prefix typically denotes split-core designs intended for easy installation on existing wiring harnesses.

Replacement Considerations

Check Fair-Rite datasheets for other Material 43 flat cable cores with similar internal widths. Verify impedance curves match the specific frequency range of the application.
