26482216

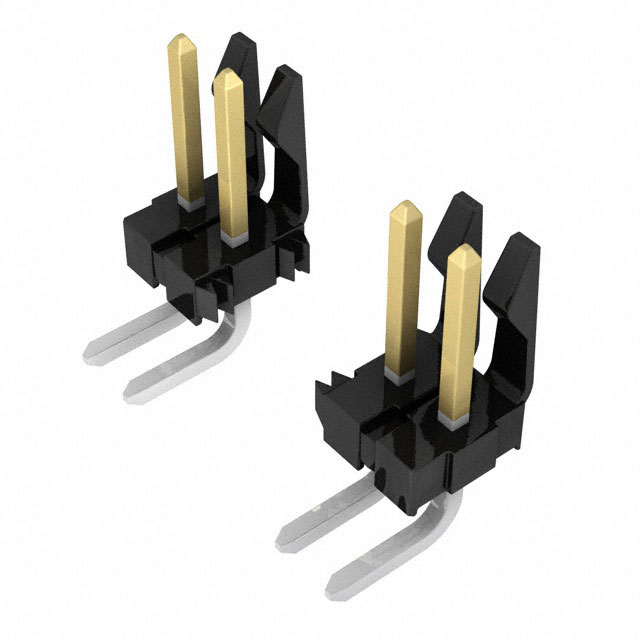

26482216 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER R/A 21POS 3.96MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 26482216

• Description：CONN HEADER R/A 21POS 3.96MM
• Series：KK396, 41672
• Mfr：Molex
• Package：Bulk
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.156" (3.96mm)
• Number of Positions：21
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 1 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Friction Lock
• Contact Length - Mating：0.450" (11.43mm)
• Contact Length - Post：0.212" (5.38mm)
• Overall Contact Length：-
• Insulation Height：0.355" (9.02mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：20.0µin (0.51µm)
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyester
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 26482216
