2673000801

Ferrite Cable Overview

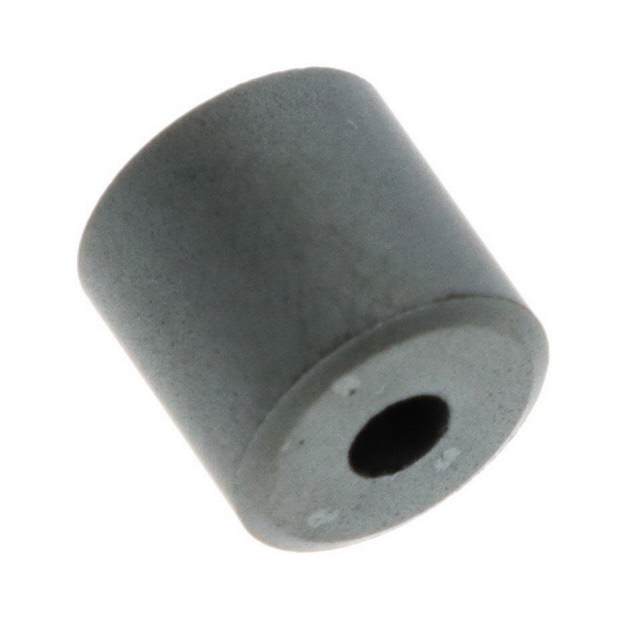

The Fair-Rite 2673000801 is a cylindrical ferrite cable core designed for electromagnetic interference suppression. It utilizes 73 material, optimized for frequencies below 50 MHz. The component features an outer diameter of 7.5 mm (0.296 inches), an inner diameter of 2.4 mm (0.094 inches), and a length of 7.5 mm (0.297 inches). It provides a minimum impedance of 48 ohms at 10 MHz.

Ferrite Cable Feature Summary

• Cylindrical solid ferrite construction
• EMI suppression functionality
• Controlled impedance specifications

Ferrite Cable Applications

• Electromagnetic interference suppression
• Cable shielding bead application

Ferrite Cable Procurement Notes

Verify the specific impedance requirements against the datasheet to ensure compatibility with target frequency ranges. Confirm physical dimensions match the cable diameter constraints. Check RoHS compliance status if required by project specifications. Ensure the supplier source is authorized to guarantee part authenticity.

Ferrite Cable Selection Notes

Select this component when low-frequency EMI suppression is required. The 73 material composition is suitable for applications operating below 50 MHz. Consider the fixed inner diameter when selecting cables. Evaluate the impedance characteristics at the specific noise frequency of interest.

Ferrite Cable Part Context

This part belongs to the Fair-Rite 26 series of ferrite beads. It is categorized as a shield bead or cable core. The product line focuses on passive components for signal integrity and noise reduction in electronic circuits.

Ferrite Cable Replacement Considerations

No public confirmed substitute part numbers are available.
