Product Detailed Parameters
- Description：FERRITE BEAD CYLINDER 1LN
- Series：-
- Mfr：Fair-Rite Products Corp.
- Package：Bulk
- Filter Type：-
- Number of Lines：-
- Impedance @ Frequency：-
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Ratings：-
- Operating Temperature：-
- Package / Case：Cylinder
- Mounting Type：Free Hanging
- Height (Max)：-
- Size / Dimension：0.77" Dia x 0.409" L (1.95mm x 10.40mm)
- Features：-
Download product information
Overview

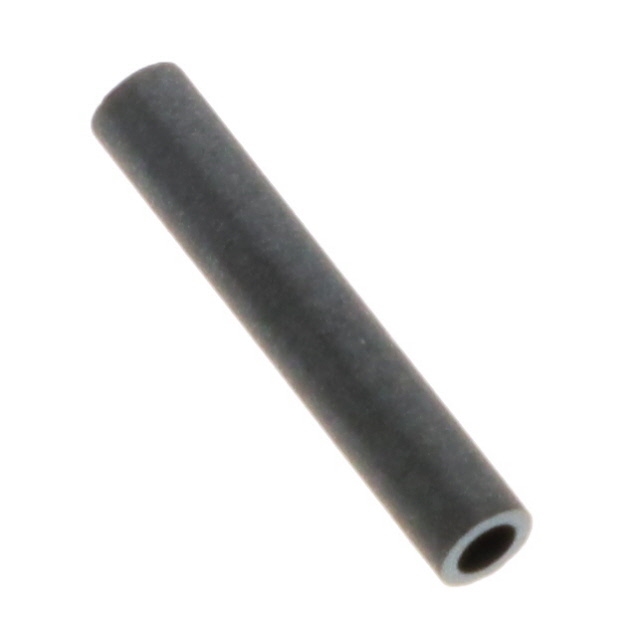

Fair-Rite 2673002201 is a solid round ferrite cable core designed for electromagnetic interference suppression. It utilizes Fair-Rite Material 73, which provides high magnetic permeability suitable for broadband noise attenuation. The component features a cylindrical geometry with an inner diameter of 1.45 mm and an outer diameter of 5.1 mm. The external length measures 11.1 mm. It exhibits an impedance of 95 ohms at a test frequency of 10 MHz. The unit operates within a temperature range of -55°C to +125°C.
Feature Summary
- Solid round construction for easy installation onto cables
- Material 73 composition optimized for broadband noise suppression
- Cylindrical shield bead design facilitates direct wire wrapping
Applications
- Electromagnetic interference suppression on signal cables
- Noise filtering in electronic assemblies
- Common mode choke applications for data lines
Procurement Notes
Verify the specific material designation and impedance characteristics against the application requirements before procurement. Confirm that the inner diameter accommodates the target cable gauge without excessive force or loose fit. Ensure compliance with relevant environmental regulations such as RoHS if required by the end product specifications.
Selection Notes
Select this component when broadband noise reduction is required for small diameter cables. Material 73 offers a balance of permeability and resistivity effective across a wide frequency spectrum. Consider the physical dimensions to ensure adequate clearance within the enclosure. Evaluate the thermal operating limits to confirm suitability for the intended environment.
Part Context
This part belongs to the Fair-Rite 26 series of ferrite beads and cores. These components are widely used in electronics manufacturing for EMI control. The 2673002201 specifically addresses needs for compact, through-hole style noise suppression where soldering is not desired.
Replacement Considerations
Check for equivalent parts from other manufacturers offering Material 73 with similar impedance curves. Verify dimensional compatibility, particularly the inner diameter and overall length, to ensure mechanical fit in existing designs.
