2673015301

Ferrite Cable Overview

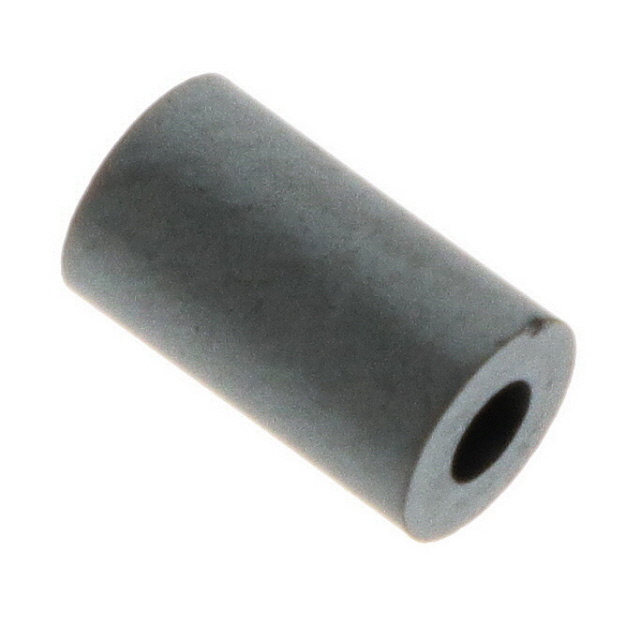

Fair-Rite 2673015301 is a solid round ferrite cable core from the 26 series, utilizing Material 73. It functions as an EMI suppression shield bead with a nominal impedance of 15 ohms at 25 MHz. The component features a cylindrical geometry with an inner diameter of 1.8 mm, an outer diameter of 4.1 mm, and an external length of 6.85 mm. Designed for bulk packaging, it provides reliable noise attenuation for cables fitting within its specific bore dimensions.

Ferrite Cable Feature Summary

• Solid round construction for secure cable retention
• Material 73 optimized for high-frequency noise suppression
• Shield bead design for targeted EMI reduction

Ferrite Cable Applications

• Cable shielding in electronic assemblies
• EMI suppression on signal lines
• Noise filtering for data cables

Ferrite Cable Procurement Notes

Verify that the target cable diameter falls within the 1.8 mm inner diameter specification to ensure proper fit. Confirm that Material 73 aligns with the required frequency response characteristics for the application. Check RoHS compliance status if restricted substances are a constraint. Ensure the solid core type matches the assembly requirements rather than split-core alternatives.

Ferrite Cable Selection Notes

Select this part when a fixed-geometry solid core is preferred over snap-on types for permanent installations. Material 73 is suitable for applications requiring moderate impedance at higher frequencies. Compare the 15 ohm impedance value against other series options if different attenuation levels are needed. Ensure the 4.1 mm outer diameter fits within the available spatial constraints of the design.

Ferrite Cable Part Context

This component belongs to Fair-Rite's 26 series of ferrite cable cores, which offers various material compositions and dimensions. The 2673015301 specifically utilizes Material 73, distinct from other materials like 43 or 61 found in similar physical sizes. It serves as a passive component for electromagnetic interference mitigation in wiring harnesses.

Ferrite Cable Replacement Considerations

Direct substitutes include other Fair-Rite 26 series beads with identical 1.8 mm ID, 4.1 mm OD, and 6.85 mm length using Material 73. Verify impedance specifications match the 15 ohm requirement at 25 MHz before substitution.
