2673022401

$0.21

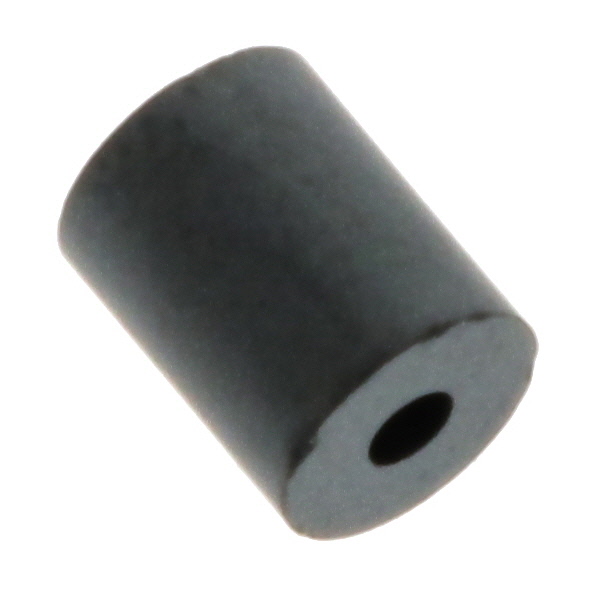

Description：FERRITE BEAD CYLINDER 1LN
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk

SKU:f302abed0361 Category: Ferrite Beads and Chips Brand: Fair-Rite Products Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD CYLINDER 1LN
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk
Filter Type：-
Number of Lines：-
Impedance @ Frequency：-
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Ratings：-
Operating Temperature：-
Package / Case：Cylinder
Mounting Type：Free Hanging
Height (Max)：-
Size / Dimension：0.201" Dia x 0.250" L (5.10mm x 6.35mm)
Features：-

Download product information

2673022401

Overview

Fair-Rite 2673022401 is a ferrite bead cylinder designed for electromagnetic interference suppression. It features a solid round cable core construction with an inner diameter of 1.45 mm and an outer diameter of 5.1 mm. The component exhibits an impedance of 46.4 ohms at 100 MHz. It operates within a temperature range of -55°C to +125°C and complies with RoHS standards.

Feature Summary

Solid round cable core design for easy installation over wires
Provides effective electromagnetic interference suppression
RoHS compliant material composition

Applications

EMI suppression on signal cables
Noise filtering in electronic assemblies
Cable protection against high-frequency interference

Procurement Notes

Verify the specific impedance value of 46.4 ohms at 100 MHz against your circuit requirements. Confirm that the 1.45 mm inner diameter accommodates the target cable gauge. Ensure the operating temperature range meets environmental conditions. Check for RoHS compliance documentation if required by your manufacturing standards.

Selection Notes

Select this component when a solid cylindrical ferrite bead is needed for direct cable application. The 46.4 ohm impedance at 100 MHz suits general EMI suppression tasks. Consider the physical dimensions to ensure fit within the enclosure. Verify compatibility with the cable diameter before finalizing the selection.

Part Context

This part belongs to Fair-Rite's series of ferrite beads and chips. It is categorized as an EMI suppression bead. The product line focuses on providing reliable noise reduction solutions for various electronic applications through standardized ferrite materials.
