2673025301

Overview

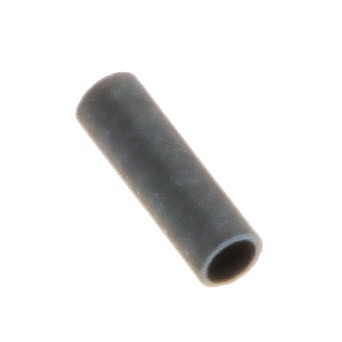

Fair-Rite 2673025301 is a ferrite cable core designed for electromagnetic interference suppression. It utilizes Fair-Rite Material 73, which provides high impedance characteristics suitable for shielding applications. The component features a cylindrical geometry with an inner diameter of 1.45 mm and an outer diameter of 5.1 mm. Its external length measures 11.1 mm. The part exhibits an impedance of 95 ohms at a test frequency of 10 MHz. It is classified as a shield bead type and is compliant with RoHS standards.

Feature Summary

• Constructed from Material 73 for effective high-frequency noise attenuation
• Cylindrical solid core design facilitates easy installation over cables
• Optimized for shield bead applications to reduce electromagnetic interference

Applications

• Electromagnetic interference suppression on signal cables
• Shield bead implementation in electronic assemblies
• Common mode noise reduction in communication lines

Procurement Notes

Verify the specific material composition and impedance specifications against your circuit requirements before procurement. Confirm that the physical dimensions, particularly the inner diameter, accommodate the target cable size. Ensure compliance with relevant environmental regulations such as RoHS if required by your manufacturing standards. Cross-reference the manufacturer part number with authorized distributors to ensure authenticity.

Selection Notes

Select this component when Material 73 properties are required for the intended frequency range. Consider the inner diameter constraint of 1.45 mm during mechanical design. Evaluate the impedance profile at 10 MHz to ensure it meets the noise suppression targets. Compare alternative materials if different permeability or saturation characteristics are needed for the specific application environment.

Part Context

This part belongs to the Fair-Rite 26 series of ferrite components. It is categorized under ferrite beads and chips, specifically as a round cable core. The product line focuses on providing passive components for EMI/RFI mitigation in various electronic systems. Fair-Rite Products Corp. manufactures these components using proprietary ferrite formulations tailored for specific frequency responses.

Replacement Considerations

Consult official Fair-Rite documentation for direct substitutes. Verify compatibility regarding material grade, physical dimensions, and impedance curves. Ensure any replacement maintains the same RoHS compliance status.
