2673200201

Ferrite Cable Overview

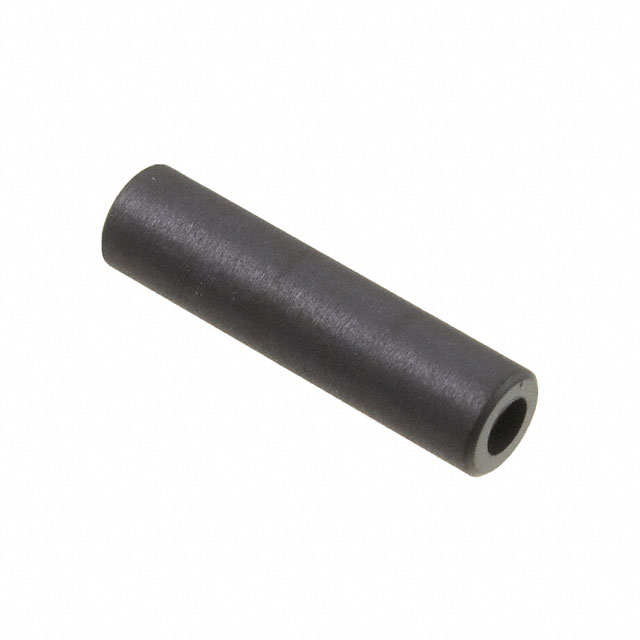

Fair-Rite 2673200201 is a solid ferrite cable core bead constructed from Material 73. It features an outside diameter of 5.2 mm and an outside length of 20.6 mm. Designed for electromagnetic interference suppression, this component serves as a board or cable-mounted shield bead. The product is packaged in bulk quantities.

Ferrite Cable Feature Summary

• Solid construction eliminates the need for opening mechanisms during installation.
• Material 73 composition provides specific high-frequency magnetic properties for noise attenuation.

Ferrite Cable Applications

• Electromagnetic interference (EMI) suppression on cables
• Shield bead applications for signal integrity

Ferrite Cable Procurement Notes

Verify the exact Material 73 specification against current Fair-Rite datasheets to ensure compatibility with target frequency ranges. Confirm physical dimensions match design constraints. Check RoHS compliance status for regulatory adherence. Ensure packaging type aligns with assembly requirements.

Ferrite Cable Selection Notes

Select this part when a solid, non-split ferrite bead is required for permanent cable installations. Material 73 is suitable for higher frequency noise suppression compared to standard mix materials. Verify that the 5.2 mm outer diameter accommodates the cable bundle size without excessive strain.

Ferrite Cable Part Context

This component belongs to the Fair-Rite ferrite cable core family, specifically utilizing the 73 material formulation known for its performance in the VHF/UHF range. It functions as a passive EMI suppression device, converting high-frequency noise energy into heat through magnetic hysteresis losses within the ferrite structure.

Ferrite Cable Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Equivalent components must be sourced based on matching Material 73 specifications, dimensional tolerances, and impedance characteristics.
