2675000101

Overview

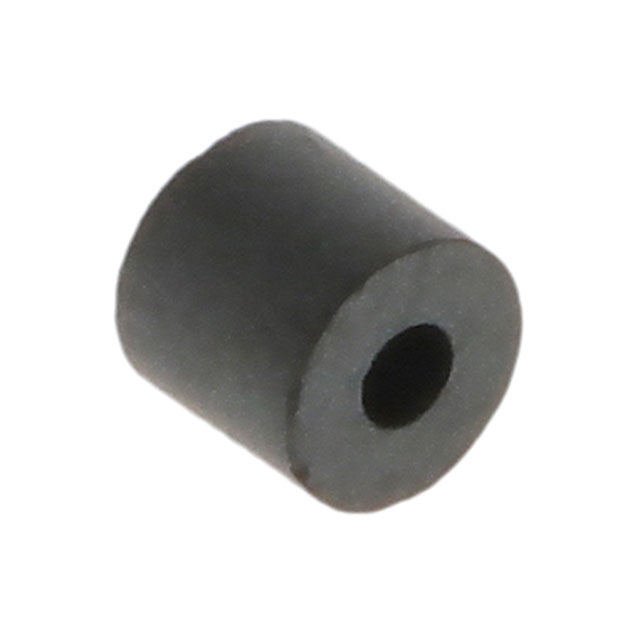

Fair-Rite 2675000101 is a solid free-hanging ferrite cable core designed for high-frequency noise suppression. It features a cylindrical geometry with an inner diameter of 1.40mm and an outer diameter of 3.70mm, measuring 3.50mm in length. The component utilizes Fair-Rite Material 23, providing an impedance of 23 Ohms at 25MHz. This configuration supports effective common-mode noise reduction on small-diameter wires without requiring assembly clips or split mechanisms.

Feature Summary

• Solid cylindrical construction eliminates the need for opening mechanisms
• Material 23 composition optimized for specific frequency attenuation
• Free-hanging design allows direct insertion onto wire leads

Applications

• Suppressing high-frequency common-mode noise on small-diameter wires
• Signal integrity enhancement for compact electronic assemblies
• Lead filtering in low-profile circuit designs

Procurement Notes

Verify current lifecycle status directly with the manufacturer as availability information may be unclear. Confirm material specifications and impedance characteristics against your specific frequency requirements before finalizing procurement decisions to ensure compatibility with your electromagnetic interference mitigation strategy.

Selection Notes

Select this component when working with wires having diameters close to 1.40mm. The solid form factor requires pre-assembly of cables before core installation. Ensure the operating environment does not require split-core accessibility for retrofits. Material 23 performance should be validated against target noise frequencies.

Part Context

This part belongs to Fair-Rite's line of solid ferrite cable cores. Unlike openable snap-on types, these require threading during manufacturing. They are distinct from chip beads and EMI gaskets, serving specifically as through-hole magnetic suppressors for discrete wiring applications where space constraints favor compact cylindrical geometries.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify dimensional fit and impedance curves carefully if considering alternative manufacturers' solid ferrite cores.
