2675540002

Overview

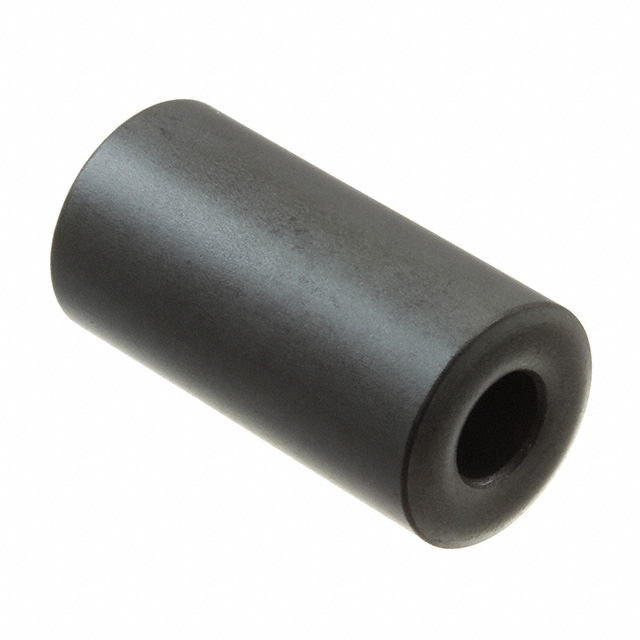

Fair-Rite Products Corp. part number 2675540002 is a solid, free-hanging round cable ferrite core designed for electromagnetic interference suppression. The component utilizes Material 43 and features an inner diameter of 0.250 inches (6.35mm), an outer diameter of 0.563 inches (14.30mm), and a length of 1.126 inches (28.60mm). It provides a guaranteed minimum impedance of 75 ohms at 100 MHz.

Feature Summary

• Solid construction with a free-hanging design for easy installation on cables
• Utilizes Material 43 composition for effective high-frequency noise attenuation
• Provides guaranteed minimum impedance specifications for EMI suppression

Applications

• Electromagnetic interference suppression on round cables
• High-frequency noise filtering in electronic assemblies

Procurement Notes

Verify the specific material grade and impedance rating against project requirements before procurement. Confirm that the physical dimensions, particularly the inner diameter, accommodate the target cable size without excessive clearance or tight fit. Ensure compliance with relevant environmental standards such as RoHS if mandated by the end-use application.

Selection Notes

Select this component when a solid, non-split ferrite core is required for permanent cable installations. Material 43 is suitable for applications requiring significant impedance in the higher frequency range. Ensure the cable diameter fits within the 6.35mm inner diameter constraint during the mechanical design phase.

Part Context

This part belongs to Fair-Rite's Round Cable EMI Suppression Cores series, specifically designated as 'Snap-Its' in some documentation contexts, though it is a solid bead rather than a split ring. It is distinct from openable cores and EP type transformer cores found in other product lines.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data.
