2675540202

Overview

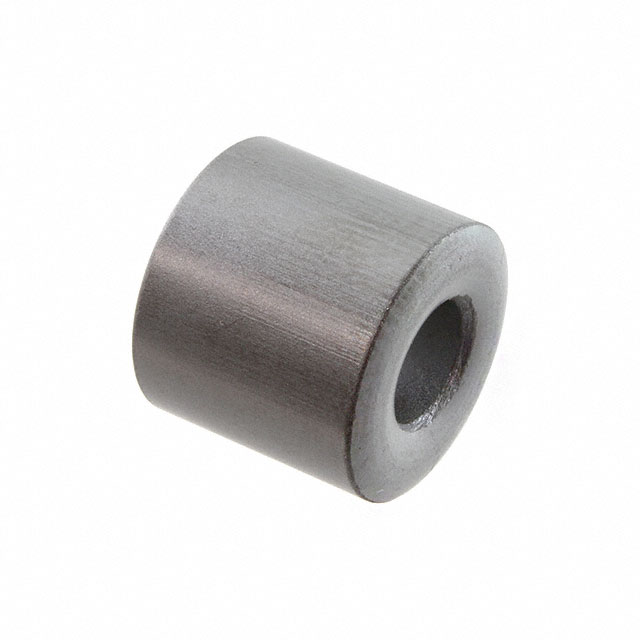

The Fair-Rite Products Corp. 2675540202 is a solid, free-hanging round cable ferrite core designed for electromagnetic interference suppression. It utilizes Material 31 and provides an impedance of 75 Ohms at 100 MHz. The component features an inner diameter of 6.35 mm (0.250 inches), an outer diameter of 14.30 mm (0.563 inches), and a length of 13.46 mm (0.530 inches). This part is controlled for impedance values only, with minimum specifications defined at marked frequencies.

Feature Summary

• Solid cylindrical design for free-hanging installation on cables
• Material 31 composition optimized for high-frequency noise suppression
• Impedance-controlled manufacturing to ensure consistent performance

Applications

• Electromagnetic interference suppression
• Cable noise filtering

Procurement Notes

Verify the specific impedance requirements against the manufacturer's datasheet, as this component is controlled for impedance values only. Confirm that the Material 31 composition aligns with the target frequency range for effective noise attenuation. Ensure the physical dimensions match the cable diameter and available space constraints in the assembly.

Selection Notes

Select this component when a solid, non-split ferrite core is required for permanent cable installations. Material 31 offers high permeability suitable for suppressing common-mode noise in the higher frequency spectrum. The free-hanging style allows for easy installation without modifying existing cable assemblies or connectors.

Part Context

This part belongs to the Fair-Rite 26 series of round cable cores. These components are widely used in electronic equipment to mitigate radio frequency interference. The 2675540202 variant specifically targets applications requiring robust, fixed-geometry suppression elements rather than split-core alternatives.

Replacement Considerations

No public confirmed substitute part numbers are available.
