2675626402

Overview

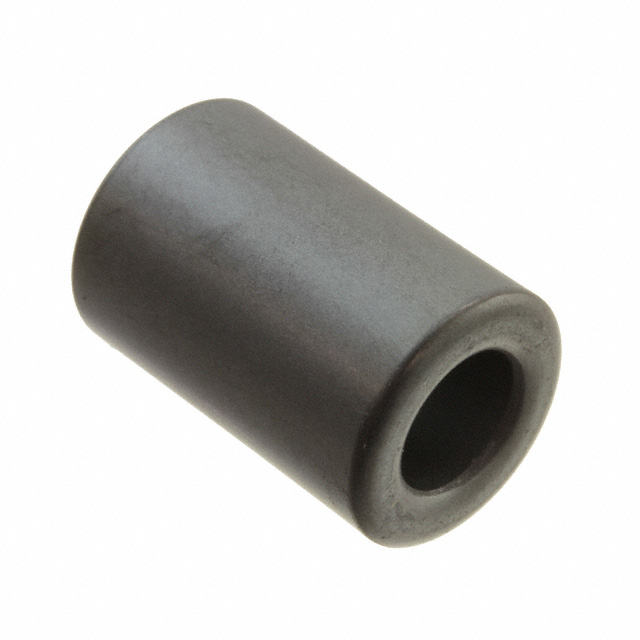

Fair-Rite 2675626402 is a solid round ferrite cable core from the 26 series, utilizing Material 75. It provides an impedance of 10 Ohms at 100 MHz. The component features an inner diameter of 4.95 mm and an outer diameter of 9.5 mm. External dimensions are 34.8 mm in length and 13 mm in height.

Feature Summary

• Solid round construction for permanent installation on cables
• Material 75 optimized for high-frequency noise suppression
• Designed for electromagnetic interference (EMI) reduction

Applications

• Electromagnetic interference suppression on signal lines
• Common mode choke applications for data cables
• Noise filtering for electronic equipment wiring

Procurement Notes

Verify the specific impedance value and material grade against the manufacturer's official datasheet before procurement. Confirm that the inner diameter accommodates the target cable bundle size to ensure proper fit and effective magnetic coupling.

Selection Notes

Select this component when a solid, non-split design is required for permanent cable treatment. Material 75 is suitable for higher frequency ranges compared to lower permeability materials. Ensure the physical dimensions match the available space constraints on the assembly.

Part Context

This part belongs to Fair-Rite's 26 series of round cable cores. The numbering system indicates Product Class 26 and Material Grade 75. These components are standard passive elements used for EMI control in various electronic assemblies without requiring active power sources.

Replacement Considerations

Check Fair-Rite documentation for alternative part numbers with identical Material 75 composition and compatible inner diameter specifications. Verify dimensional compatibility if substituting with other manufacturers' offerings.
