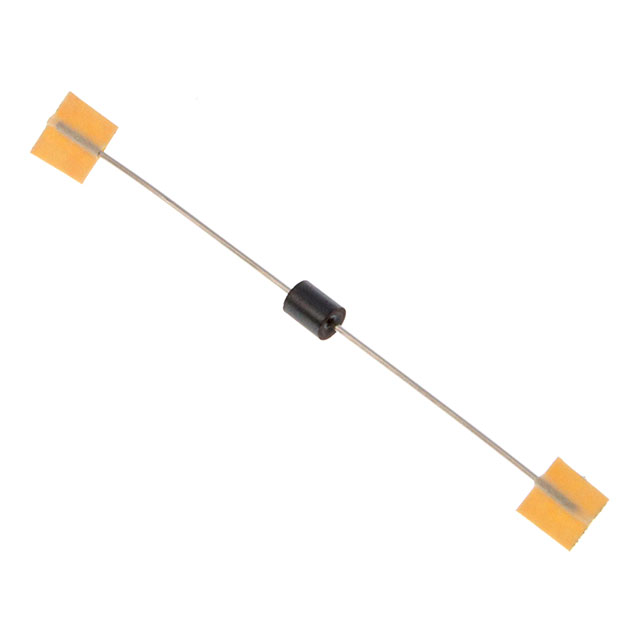

2743001112

$0.16

Description：FERRITE BEAD 70 OHM AXIAL 4LN
Series：-
Mfr：Fair-Rite Products Corp.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a3997fa26ca4 Category: Ferrite Beads and Chips Brand: Fair-Rite Products Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 70 OHM AXIAL 4LN
Series：-
Mfr：Fair-Rite Products Corp.
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：-
Number of Lines：1
Impedance @ Frequency：70 Ohms @ 100 MHz
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Package / Case：Axial
Mounting Type：Through Hole
Height (Max)：-
Size / Dimension：0.138" Dia x 0.175" L (3.51mm x 4.44mm)
Features：-

Download product information

2743001112

Overview

Fair-Rite 2743001112 is an axial ferrite bead utilizing Material 43. It provides an impedance of 68 ohms at a test frequency of 100 MHz. The component features an unshielded design with two pins and weighs approximately 0.400 grams. It is intended for broadband frequency suppression applications.

Feature Summary

Utilizes Fair-Rite Material 43 for effective noise suppression
Axial lead configuration for through-hole mounting
Unshielded construction suitable for general EMI filtering

Applications

Broadband frequency noise suppression
EMI filtering on leads
Cable or wire harness noise reduction

Procurement Notes

Verify the specific impedance value against the official datasheet, as sources indicate variations between 68 and 70 ohms at 100 MHz. Confirm that Material 43 aligns with your frequency requirements. Ensure axial lead compatibility with your assembly process before ordering.

Selection Notes

Select this component when broadband attenuation is required using Material 43 characteristics. The axial form factor facilitates easy integration into existing wiring harnesses. Verify that the 68-ohm impedance level meets the target noise spectrum needs for the application.

Part Context

This part belongs to the Fair-Rite Beads-on-Leads series. It is designed for suppressing electromagnetic interference in cables and wires. The Material 43 composition offers high permeability for effective noise absorption across a broad frequency range.
