Product Detailed Parameters

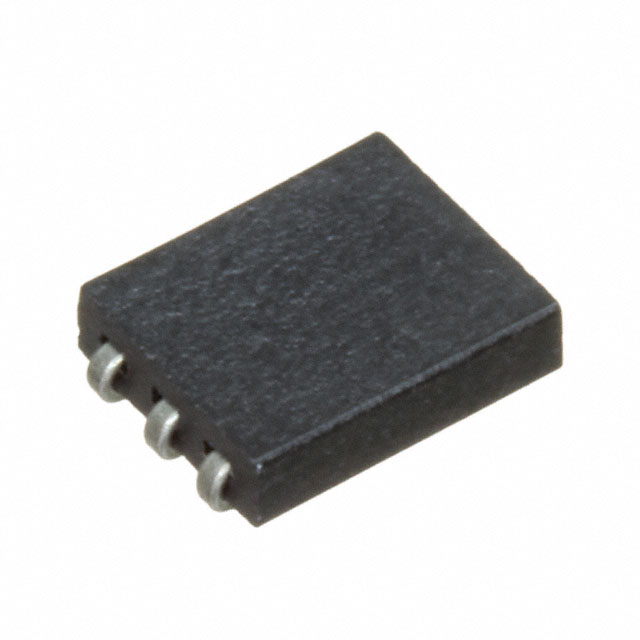

- Description：FERRITE BEAD 63 OHM 6SMD 1LN
- Series：-
- Mfr：Fair-Rite Products Corp.
- Package：Bulk
- Filter Type：-
- Number of Lines：3
- Impedance @ Frequency：63 Ohms @ 100 MHz
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：1.6mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：6-SMD, J-Lead
- Mounting Type：Surface Mount
- Height (Max)：0.077" (1.95mm)
- Size / Dimension：0.252" L x 0.177" W (6.40mm x 4.50mm)
- Features：-
Download product information
Overview
Fair-Rite Products Corp. part number 2744040446 is a ferrite bead component designed for surface-mount applications. It features a 6-SMD, J-Lead package configuration and utilizes Fair-Rite material 44. The impedance specification is 63 Ohms at a frequency of 100 MHz. The device supports a current rating of 5 Amperes with a maximum DC resistance of 1.6 milliohms. It is classified as a three-line ferrite bead suitable for differential mode filtering.
Feature Summary
- Utilizes Fair-Rite Material 44 for high-frequency noise suppression
- Designed for surface-mount installation with J-lead termination
- Supports high current handling up to 5 Amperes
- Configured as a three-line ferrite bead for differential mode applications
Applications
- Differential mode signal line filtering
- High-speed data interface noise suppression
- Power line EMI reduction in compact surface-mount designs
Procurement Notes
Verify the specific package variant when ordering, as documentation references both 1LN and 3LN configurations for this part number. Confirm the impedance value of 63 Ohms at 100 MHz matches the design requirements. Ensure the 5A current rating and 1.6mOhm DCR are compatible with the target circuit parameters before finalizing procurement.
Selection Notes
Select this component when differential mode filtering is required for signals carrying up to 5 Amperes. The 63 Ohm impedance at 100 MHz makes it suitable for suppressing noise in high-speed digital interfaces. The surface-mount J-lead package facilitates automated assembly in space-constrained PCB layouts requiring robust EMI performance.
Part Context
This component belongs to the Fair-Rite ferrite beads and chips category. It is manufactured using proprietary ferrite materials optimized for broadband noise absorption. The product line includes various impedance values and package styles to address diverse electromagnetic interference challenges in electronic systems.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source documentation. Verify compatibility with alternative components by matching impedance curves, current ratings, and physical dimensions.
