2747280000

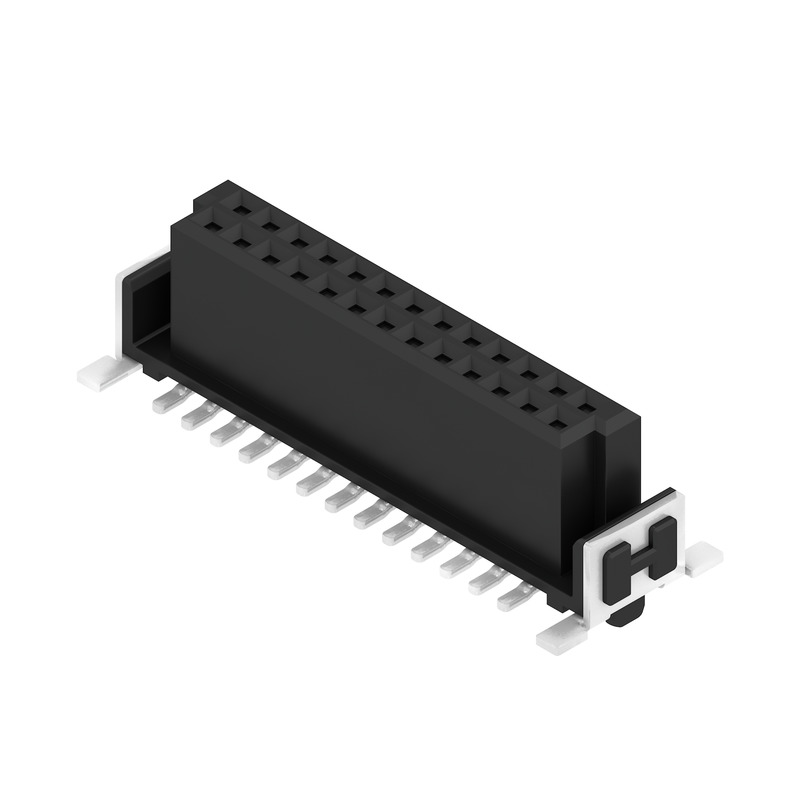

2747280000 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Weidmüller. Its product description is CONNECTOR 1.27 MM. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2747280000

• Description：CONNECTOR 1.27 MM
• Series：Omnimate
• Mfr：Weidmüller
• Package：Bulk
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：26
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：1.97µin (0.050µm)
• Insulation Color：Black
• Insulation Height：0.246" (6.25mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：-
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide, Pick and Place, Solder Retention
• Current Rating (Amps)：-
• Voltage Rating：150V

Headers, Receptacles, Female Sockets datasheet and documents for 2747280000
