Product Detailed Parameters
- Description：CMC 5A 2LN 230 OHM SMD
- Series：-
- Mfr：Fair-Rite Products Corp.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：4.1mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.583" L x 0.276" W (14.80mm x 7.00mm)
- Height (Max)：0.209" (5.30mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：230 Ohms @ 100 MHz
Download product information
Overview

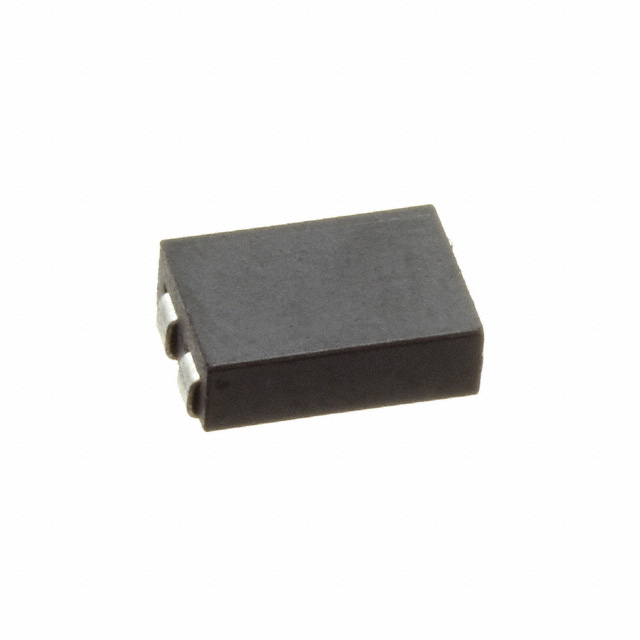

The Fair-Rite 2752065447 is a surface mount common mode choke designed for signal line filtering. It features two lines with an impedance of 230 Ohms at 100 MHz and a rated current of 5A. The component has a maximum DC resistance of 4.1 milliohms and operates within a temperature range of -55°C to 125°C. Its physical dimensions are 14.80mm in length, 7.00mm in width, and a maximum height of 5.30mm.
Feature Summary
- Provides common mode noise suppression for differential signal lines
- Surface mount construction for automated assembly integration
- High current handling capability suitable for power signal applications
Applications
- Signal line filtering in electronic circuits
- Common mode noise reduction in data transmission interfaces
- EMI suppression in compact surface mount designs
Procurement Notes
Verify the specific package variant (Tape & Reel, Cut Tape, or Digi-Reel) required for your manufacturing process. Confirm that the 5A current rating and 4.1mOhm DCR meet the thermal and electrical requirements of the target circuit design before finalizing procurement.
Selection Notes
Select this component when high current capacity is required alongside effective high-frequency noise attenuation. Ensure the PCB footprint accommodates the 14.80mm x 7.00mm x 5.30mm dimensions. Consider the operating temperature range if the application involves extreme environmental conditions.
Part Context
This part belongs to Fair-Rite's lineup of surface mount common mode chokes. It utilizes proprietary ferrite materials optimized for high impedance at 100 MHz while maintaining low DC resistance. The component is RoHS compliant and classified under EAR99 export control categories.
Replacement Considerations
Check Fair-Rite datasheets for other 2-line SMD chokes with similar 230 Ohm impedance and 5A ratings. Verify pin compatibility and dimensional constraints before substituting with alternative manufacturers' components.
