2761009112

$0.27

Description：FERRITE BEAD 167 OHM AXIAL 1LN
Series：-
Mfr：Fair-Rite Products Corp.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:238b095ad3a0 Category: Ferrite Beads and Chips Brand: Fair-Rite Products Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 167 OHM AXIAL 1LN
Series：-
Mfr：Fair-Rite Products Corp.
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：-
Number of Lines：1
Impedance @ Frequency：167 Ohms @ 100 MHz
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Package / Case：Axial
Mounting Type：Through Hole
Height (Max)：-
Size / Dimension：0.138" Dia x 0.543" L (3.50mm x 13.80mm)
Features：-

Download product information

2761009112

Overview

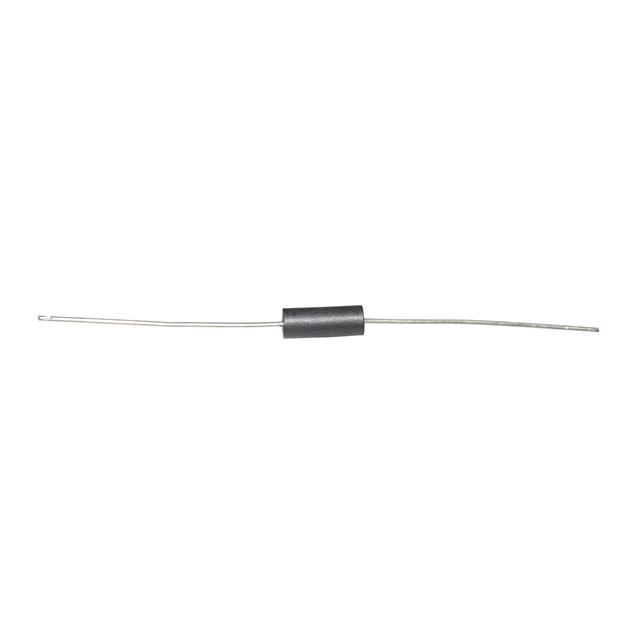

Fair-Rite Products Corp. part number 2761009112 is a ferrite suppression bead designed for automated circuit board assembly. The component consists of a ferrite core assembled on tinned copper wire, utilizing oxygen-free high-conductivity wire construction. It functions as an electromagnetic interference (EMI) filter within electronic circuits.

Feature Summary

Supplies ferrite suppression beads pre-assembled on tinned copper wire to facilitate automated circuit board assembly processes.
Utilizes oxygen-free high-conductivity wire construction for reliable electrical connectivity and signal integrity.

Applications

Automated circuit board assembly
Electromagnetic interference (EMI) suppression in electronic devices

Procurement Notes

Verify the specific material composition and impedance characteristics against your design requirements before procurement. Confirm that the axial lead configuration matches your PCB layout constraints. Ensure compatibility with automated placement equipment specifications. Cross-reference the manufacturer's latest datasheet for any updates regarding RoHS compliance or environmental certifications prior to finalizing orders.

Selection Notes

Select this component when automated assembly efficiency is prioritized over manual installation. The pre-assembled nature on tinned copper wire simplifies the manufacturing process. Consider the physical dimensions and lead spacing to ensure proper fit within the target enclosure. Evaluate the EMI suppression requirements to confirm this specific ferrite formulation meets the necessary attenuation levels for the application frequency range.

Part Context

This component belongs to Fair-Rite's line of ferrite suppression beads intended for surface mount or through-hole automated assembly. It represents a solution for integrating passive filtering directly into the manufacturing workflow without requiring separate core installation steps. The product is categorized under general-purpose EMI suppression components for consumer and industrial electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Fair-Rite engineering support for equivalent alternatives if this specific part is discontinued or unavailable.
