Overview

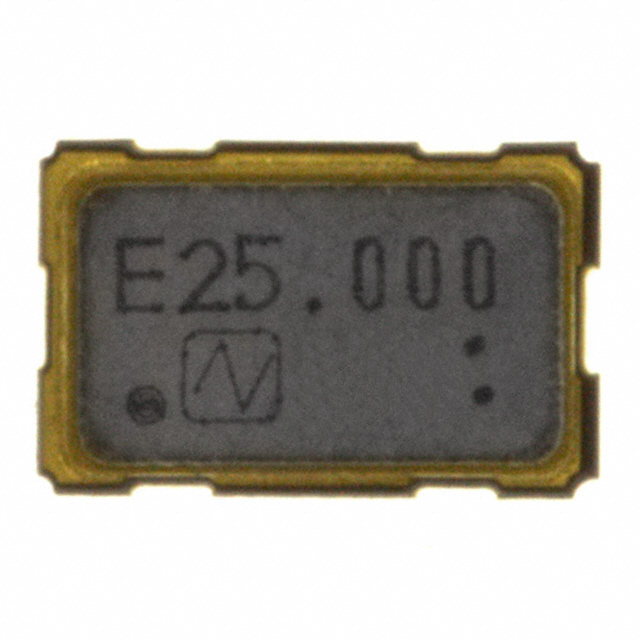

The NDK 2765E-25.000000MHZ is a CMOS standard crystal oscillator operating at 25 MHz. It features a frequency stability of ±100 ppm and operates on a 3.3V supply voltage with a maximum current consumption of 30 mA. The device supports a standby (power down) function, drawing a maximum disabled current of 30 µA. It utilizes a fundamental crystal resonator and is housed in a 4-SMD, no-lead package measuring 5.00 mm x 3.20 mm with a maximum height of 1.20 mm. The unit is rated for an operating temperature range of -20°C to +70°C.

Feature Summary

• CMOS output signal type suitable for digital logic interfaces
• Integrated power-down capability for energy conservation
• Surface-mount construction for automated assembly processes

Applications

• General-purpose clock generation in consumer electronics
• Timing reference for microcontroller systems
• Synchronization circuits in industrial control modules

Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure compatibility with required frequency tolerance and load conditions. Confirm that the 3.3V supply voltage aligns with the target system design. Check for any recent product change notices or lifecycle status updates from NDK prior to finalizing procurement plans.

Selection Notes

Select this component when a 25 MHz CMOS clock source is required within a compact 5.0x3.2mm footprint. Ensure the application environment remains within the specified -20°C to +70°C operating range. Consider the ±100 ppm stability requirement against the timing precision needs of the connected circuitry before finalizing the selection.

Part Context

This part belongs to the NDK 2765E series of surface-mount crystal oscillators. The series provides standardized clock signals for various electronic applications. The 2765E designation indicates a specific form factor and electrical characteristic set defined by the manufacturer for general-purpose timing solutions.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
