2765E-66.000000MHZ

Overview

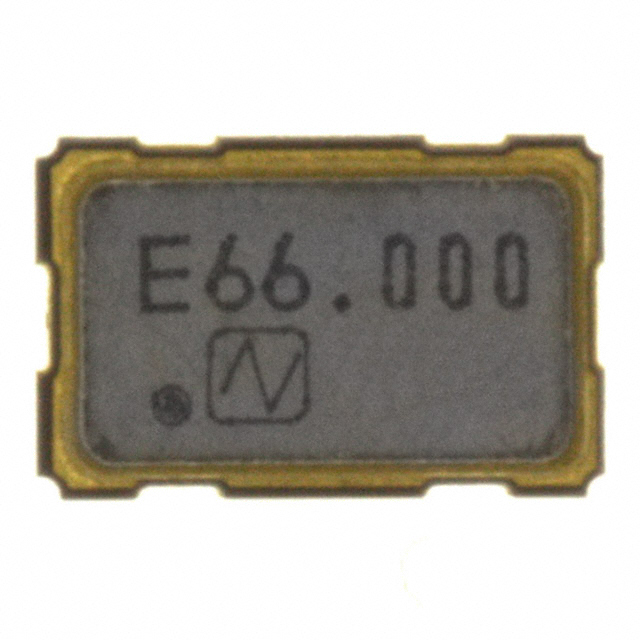

The NDK 2765E-66.000000MHZ is a discontinued CMOS crystal oscillator operating at 66.000 MHz. It features a ±100 ppm frequency stability and functions on a 3.3V supply with a maximum current consumption of 30mA. The device supports standby mode, drawing a maximum of 30µA when disabled. It utilizes a fundamental crystal resonator and is housed in a compact 4-SMD, no-lead package measuring 5.00mm x 3.20mm x 1.20mm. The unit operates within a temperature range of -20°C to 70°C and holds an MSL rating of 1.

Feature Summary

• CMOS output interface for standard digital logic compatibility
• Integrated standby function for power management
• Surface-mount design for automated assembly

Applications

• General-purpose clock signal generation
• Embedded system timing references
• Digital communication interfaces

Procurement Notes

This component is officially obsolete and no longer manufactured by NDK. Procurement must rely on secondary market distributors or verified surplus stock. Buyers should verify the authenticity and storage history of available units due to the part's end-of-life status. Cross-referencing datasheets is essential to ensure performance matches original specifications before integration into new designs.

Selection Notes

Designers requiring this specific frequency should consider alternative components from the same manufacturer or competitors. Verify that replacement parts match the required voltage, package dimensions, and electrical characteristics. Ensure the substitute oscillator meets the necessary frequency stability and operating temperature ranges for the target application environment.

Part Context

The 2765E series represents a line of surface-mount crystal oscillators produced by NDK. This specific model provides a fixed 66 MHz output. The series was designed for applications requiring reliable timing signals in space-constrained electronic devices. The 2765E-66.000000MHZ variant specifically targets systems needing this precise frequency standard.

Replacement Considerations

Abracon LLC ASFL1-50.000MHZ-L-T is listed as a similar substitute part number.
