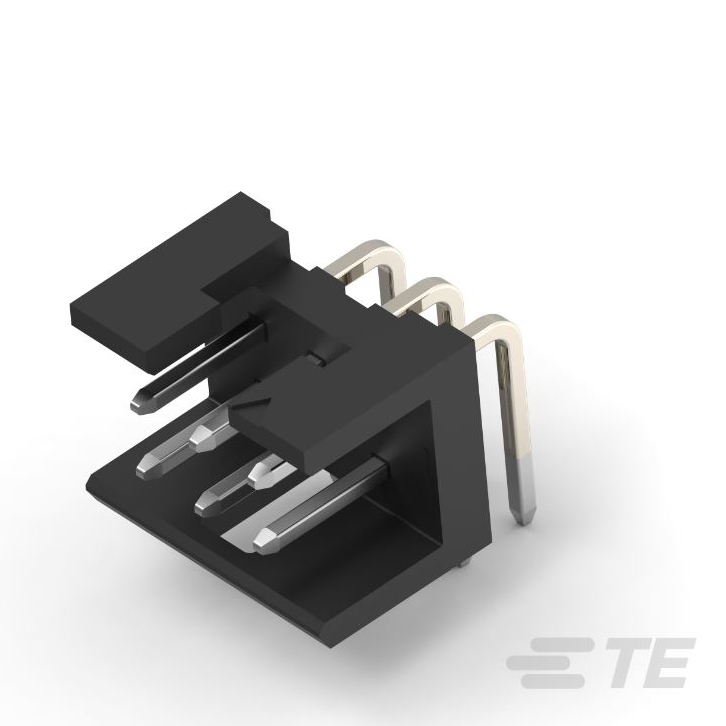

2823351-8

2823351-8 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is 8P,2MM,SHRD HDR,DRRT,2.8,SN,TB. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 2823351-8

• Description：8P,2MM,SHRD HDR,DRRT,2.8,SN,TB
• Series：AMPMODU 2MM
• Mfr：TE Connectivity AMP Connectors
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：8
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Shrouded - 2 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Detent Lock
• Contact Length - Mating：0.157" (4.00mm)
• Contact Length - Post：0.110" (2.80mm)
• Overall Contact Length：-
• Insulation Height：0.244" (6.20mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：118.1µin (3.00µm)
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：2A
• Voltage Rating：125VAC/DC
