2823405-5

Headers, Male Pins Overview

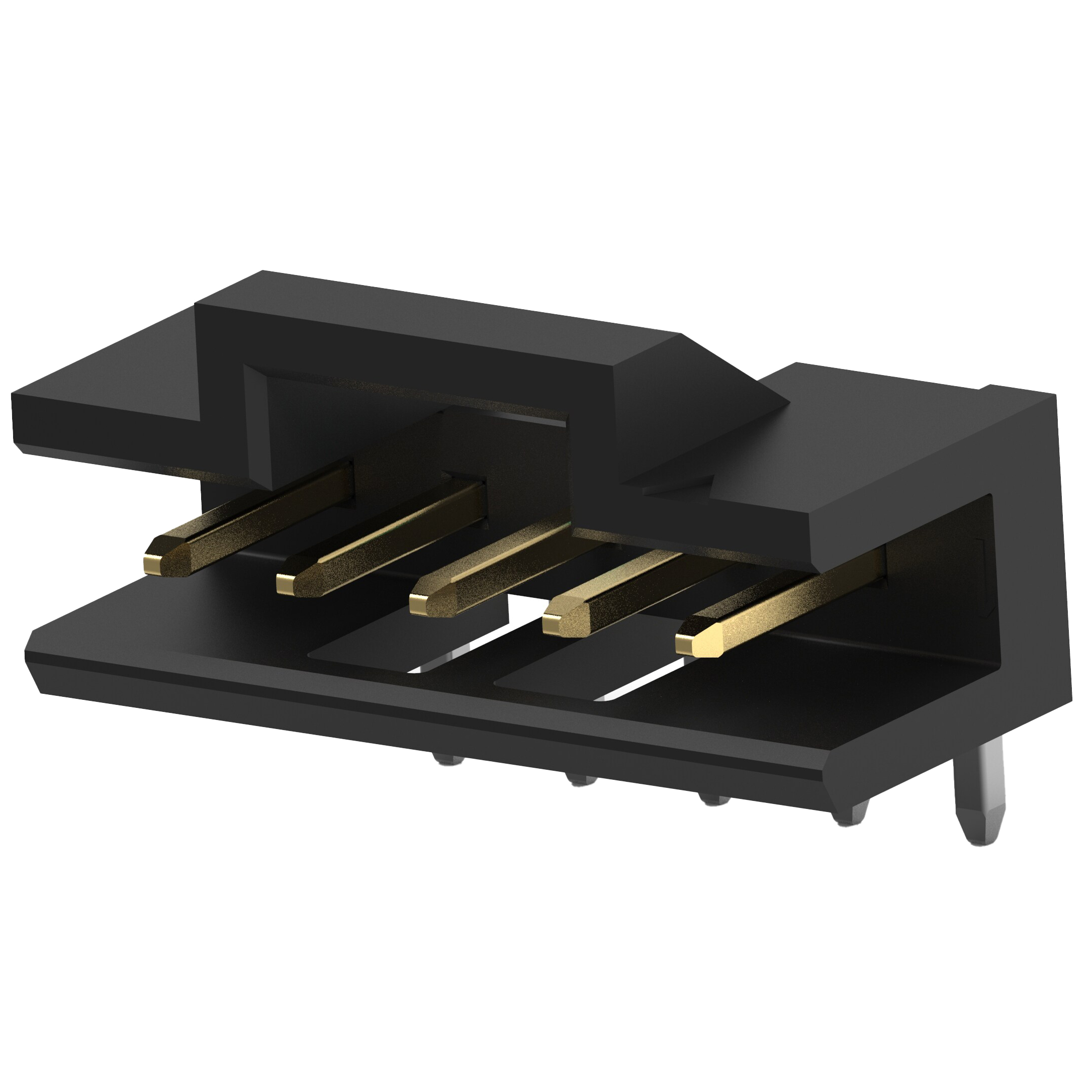

The TE Connectivity AMP Connectors part number 2823405-5 is a connector header designed for through-hole mounting. It features a single row with five positions and utilizes a 0.079-inch (2.00mm) pitch. The component is configured as a right-angle header, facilitating vertical connection to printed circuit boards while maintaining a low profile. This specific interconnection solution belongs to the AMPMODU MOD II series, which is engineered for reliable signal transmission in various electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle configuration for efficient board space utilization
• Through-hole termination method for secure PCB attachment
• Single-row design accommodating five contact positions

Headers, Male Pins Applications

• General purpose electronic equipment interconnections
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the exact pin count and pitch against the target schematic before ordering. Confirm that the right-angle orientation matches the mechanical constraints of the enclosure. Ensure compatibility with standard through-hole soldering processes. Cross-reference the manufacturer datasheet for precise dimensional tolerances and mating force requirements to guarantee proper assembly fit.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for a five-wire interface. The 2.00mm pitch offers a balance between density and ease of handling compared to finer pitches. Consider the mechanical stability provided by through-hole mounting versus surface mount alternatives. Evaluate the available clearance above the PCB to accommodate the header height.

Headers, Male Pins Part Context

This component is part of the extensive AMP Connectors portfolio managed by TE Connectivity. The AMP brand has historically specialized in crimp and header technologies since its founding. These products are widely recognized for their durability and standardized dimensions within the electronics manufacturing industry, supporting global supply chains for diverse hardware applications.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 5-position, 2.00mm pitch right-angle headers from TE Connectivity or third-party manufacturers. Verify that alternative parts match the current rating, insulation material properties, and terminal plating specifications. Ensure the replacement maintains the same mechanical footprint and locking mechanism characteristics.
