2867000102

Overview

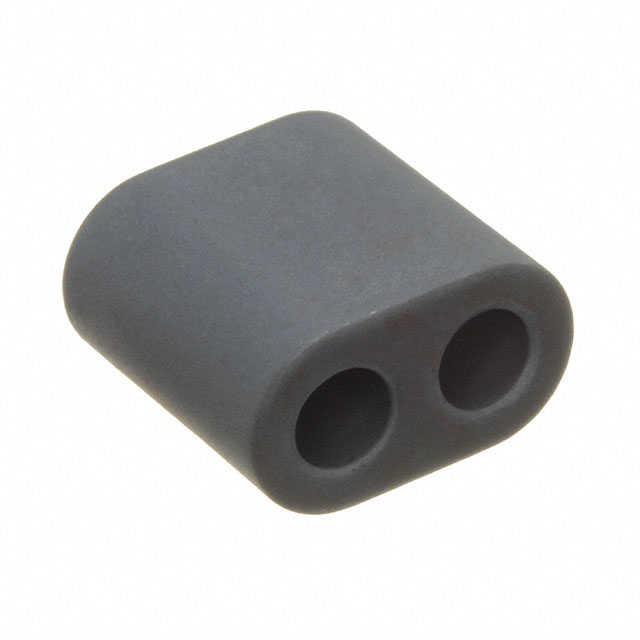

Fair-Rite 2867000102 is a multi-aperture ferrite core utilizing Material 67. It features an inductance of 89nH and is designed for suppression applications, baluns, broadband transformers, and airbag systems.

Feature Summary

• Multi-aperture design for enhanced magnetic coupling
• Material 67 composition for high-frequency performance
• Suitable for balance-unbalance transformer configurations

Applications

• Electromagnetic interference suppression
• Balun circuits
• Broadband transformers
• Airbag system components

Procurement Notes

Verify the specific Material 67 designation and inductance value against the official Fair-Rite datasheet before procurement. Confirm that the multi-aperture geometry matches the intended cable or wire bundle dimensions for proper installation and effective noise suppression.

Selection Notes

Select this component when multi-aperture geometry is required for specific winding or cabling configurations. Material 67 offers distinct permeability characteristics suitable for the targeted frequency range. Ensure the physical aperture size accommodates the conductor diameter without excessive clearance.

Part Context

This part belongs to the Fair-Rite multi-aperture ferrite core series. These cores are engineered for applications requiring multiple conductors to pass through a single magnetic structure, facilitating balanced line filtering and transformer construction in compact spaces.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
