28A0350-0B2

Overview

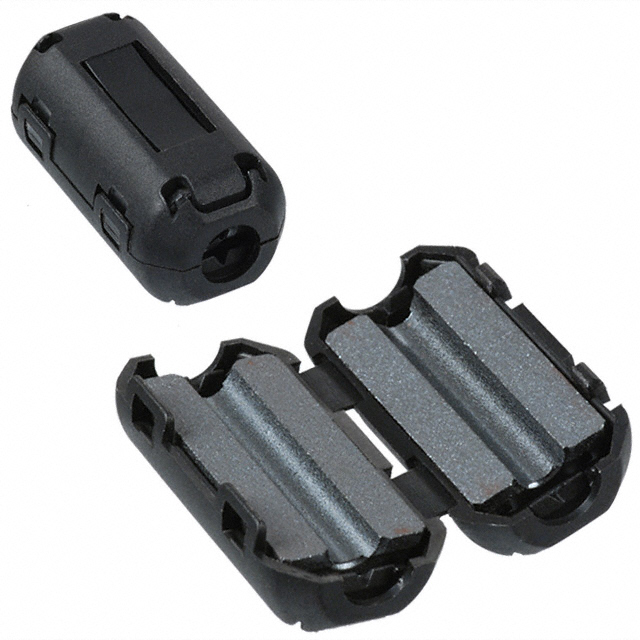

The 28A0350-0B2 is a broadband split ferrite core designed for clamp-on installation. It provides EMI suppression with an impedance of 240 Ohms at 100 MHz. The component features a 3.5 mm inner diameter and is constructed from material grade 28. It operates within a temperature range of -40°C to +125°C.

Feature Summary

• Split design allows for easy installation on existing cable assemblies without disconnecting connections.
• Provides effective common and differential mode EMI suppression for round cables.
• Hinged construction ensures secure closure around the target wire.

Applications

• Suppression on round cable assemblies
• Broadband EMI filtering applications

Procurement Notes

Verify the specific impedance value and material grade against the manufacturer's official datasheet before integration. Confirm that the 3.5 mm inner diameter accommodates the target cable assembly dimensions. Ensure compliance with RoHS3 specifications if required by the end-use environment.

Selection Notes

Select this component when retrofitting EMI protection onto existing wiring harnesses is necessary. The split-core architecture is ideal for maintenance or post-assembly modifications. Verify that the 240 Ohm impedance profile matches the noise frequency spectrum of the application.

Part Context

This part belongs to the Laird-Signal Integrity Products ferrite core family, specifically engineered as a clamp-on filter. It serves as a passive electromagnetic interference mitigation solution for high-frequency noise reduction in electronic systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.

FAQ

What is the inner diameter of the 28A0350-0B2?

The inner diameter is 3.5 mm.

What is the impedance of this ferrite core at 100 MHz?

The impedance is 240 Ohms at 100 MHz.
