28A0592-0A2

Overview

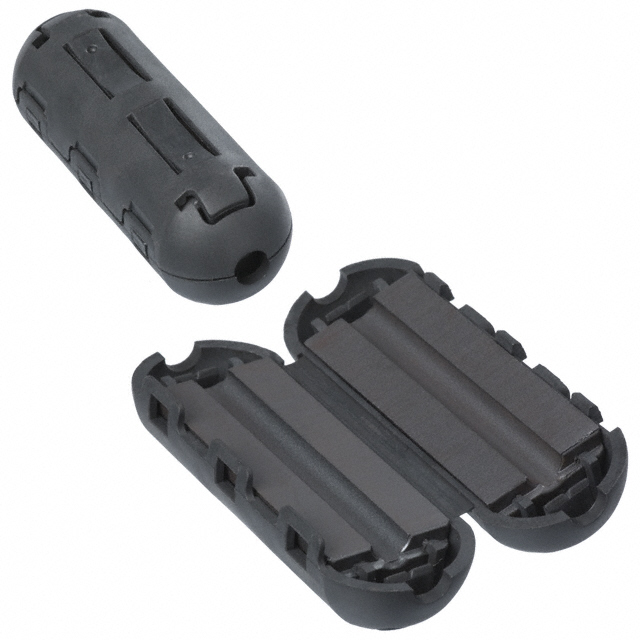

The Laird-Signal Integrity Products 28A0592-0A2 is a broadband split snap-on ferrite core designed for round cable assemblies. It features Material 28 and provides excellent common and differential mode EMI suppression. The component has an inner diameter of 0.198 inches (5.04mm) and an outer diameter of 0.738 inches (18.75mm). Its length is 2.102 inches (53.39mm). The impedance is 511 ohms at 100MHz, with some sources citing 572 ohms. It operates within a temperature range of -40°C to +125°C.

Feature Summary

• Split snap-on design allows installation on existing cables without disconnection
• Provides effective broadband EMI filtering for both common and differential modes
• Hinged plastic case construction ensures secure retention around the cable

Applications

• Suppression of electromagnetic interference on round cable assemblies
• High-frequency noise reduction in electronic wiring systems
• Broadband filtering applications requiring non-invasive installation

Procurement Notes

Verify the specific impedance value required for your application, as documentation varies between 511 ohms and 572 ohms at 100MHz. Confirm that the inner diameter of 0.198 inches accommodates the target cable bundle. Ensure the operating temperature range meets environmental requirements. Check RoHS compliance status if mandated by project specifications.

Selection Notes

Select this component when non-destructive installation on pre-assembled round cables is necessary. The split design facilitates retrofitting without cutting wires. Consider the material 28 composition for its specific frequency response characteristics. Verify physical dimensions against available space constraints around the cable assembly.

Part Context

This part belongs to the Laird 28A series of broadband EMI split snap-on ferrite cores. These components are engineered for round cables and offer performance comparable to one-piece cylindrical designs while allowing easier installation. The series is widely used for suppressing high-frequency noise in various electronic interconnects.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
