28A2024-0A0

Overview

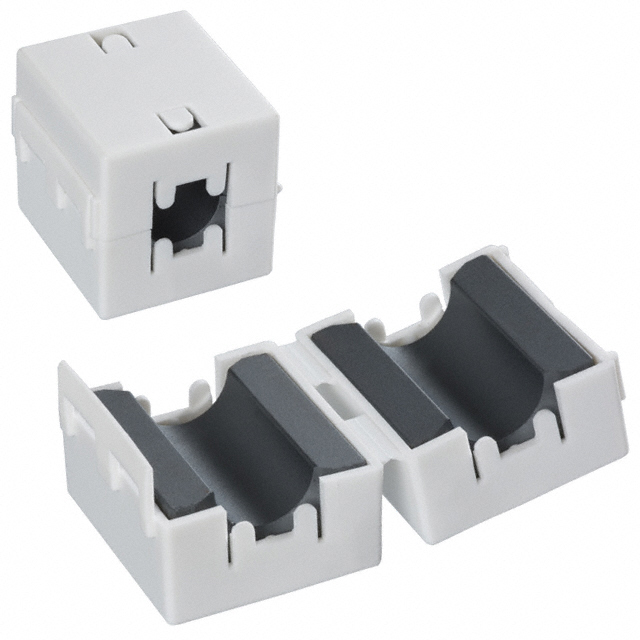

The Laird-Signal Integrity Products 28A2024-0A0 is a hinged, free-hanging ferrite core designed for cable filtering applications. It utilizes Material 28 to provide an impedance of 280 Ohms at 100 MHz. The component features a round shape with a circular internal bore measuring 0.514 inches (13.06 mm) in diameter. External dimensions are specified as 1.142 inches wide by 1.166 inches high (29.00 mm x 29.62 mm), with a length of 1.280 inches (32.50 mm).

Feature Summary

• Hinged snap-on design allows for easy installation and removal around existing cables without disconnection.
• Material 28 composition provides broadband electromagnetic interference suppression characteristics.

Applications

• Suppression of common-mode noise on power and signal cables.
• EMI mitigation in electronic equipment wiring harnesses.
• Cable filtering in industrial and commercial electronic assemblies.

Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm physical dimensions and material grade. Ensure compatibility with target cable diameters prior to procurement. Confirm RoHS3 compliance status if required by project specifications. Cross-reference datasheet revisions to validate current manufacturing parameters.

Selection Notes

Select this component when a reusable, non-destructive mounting solution is required for cable noise suppression. The 13.06 mm inner diameter accommodates cables within that size range. Material 28 is suitable for general-purpose broadband EMI reduction. Verify that the hinged mechanical structure meets the environmental durability requirements of the application.

Part Context

This part belongs to the Laird 28 series of broadband split ferrite cores. These components are engineered for high-frequency noise attenuation across various electronic systems. The series offers multiple sizes and materials to address diverse cable diameters and frequency spectra. The 28A2024-0A0 represents a specific configuration within this broad product family.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official manufacturer substitution guides or equivalent technical specifications from other vendors for compatible alternatives.
