28A2736-0A2

Overview

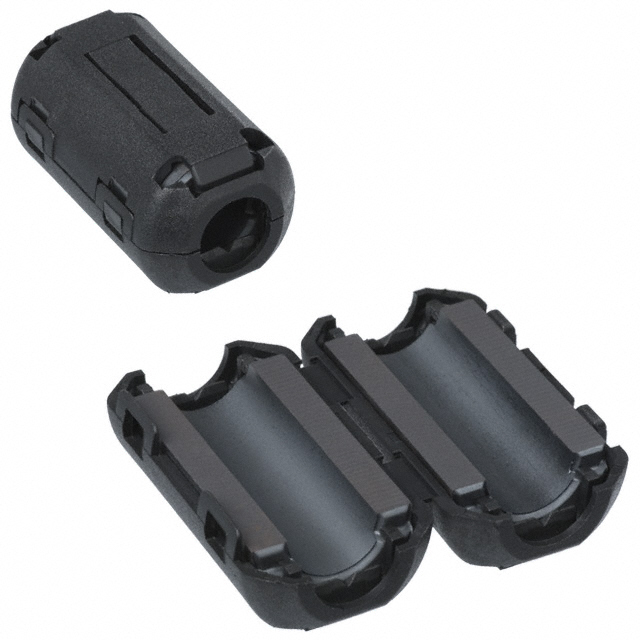

The Laird-Signal Integrity Products 28A2736-0A2 is a hinged ferrite clamp-on core designed for cable filtering. It features a round shape with an internal diameter of 9.00 mm (0.354 inches) and an external length of 35.10 mm (1.382 inches). The component provides an impedance of 220 Ohms at 100 MHz, utilizing material grade 28. It operates within a temperature range of -40°C to +125°C and is packaged in bulk quantities.

Feature Summary

• Hinged snap-on design allows installation on existing cables without disconnection
• Round core geometry accommodates single cable configurations
• Material grade 28 formulation provides specific high-frequency attenuation characteristics

Applications

• Suppression of electromagnetic interference on power cables
• Filtering noise on signal transmission lines
• Compliance enhancement for electronic equipment emissions

Procurement Notes

Verify the exact part number suffix to confirm the hinge configuration and material grade. Ensure the cable diameter falls within the 9.00 mm internal aperture limit. Confirm RoHS3 compliance status if required by your manufacturing specifications. Check lead times as they may vary based on current production schedules.

Selection Notes

Select this component when a non-invasive solution for cable filtering is required. The hinged design facilitates retrofitting onto assembled harnesses. Verify that the target cable fits securely within the 9 mm inner diameter to ensure effective magnetic coupling. Consider the operating temperature range relative to the application environment.

Part Context

This component belongs to the 28A series of ferrite clamp-on cores from Laird-Signal Integrity Products. These components are engineered for signal integrity applications where rapid deployment and minimal space utilization are critical. The series offers various impedances and dimensions to suit different cable sizes and frequency requirements.

Replacement Considerations

Cross-reference with other Laird 28A series parts for similar impedance values. Verify that any substitute maintains the same 9 mm internal diameter and hinged mechanical structure to ensure compatibility with existing cable assemblies.
